VGC_VR-N7500_basic_使用说明书手册

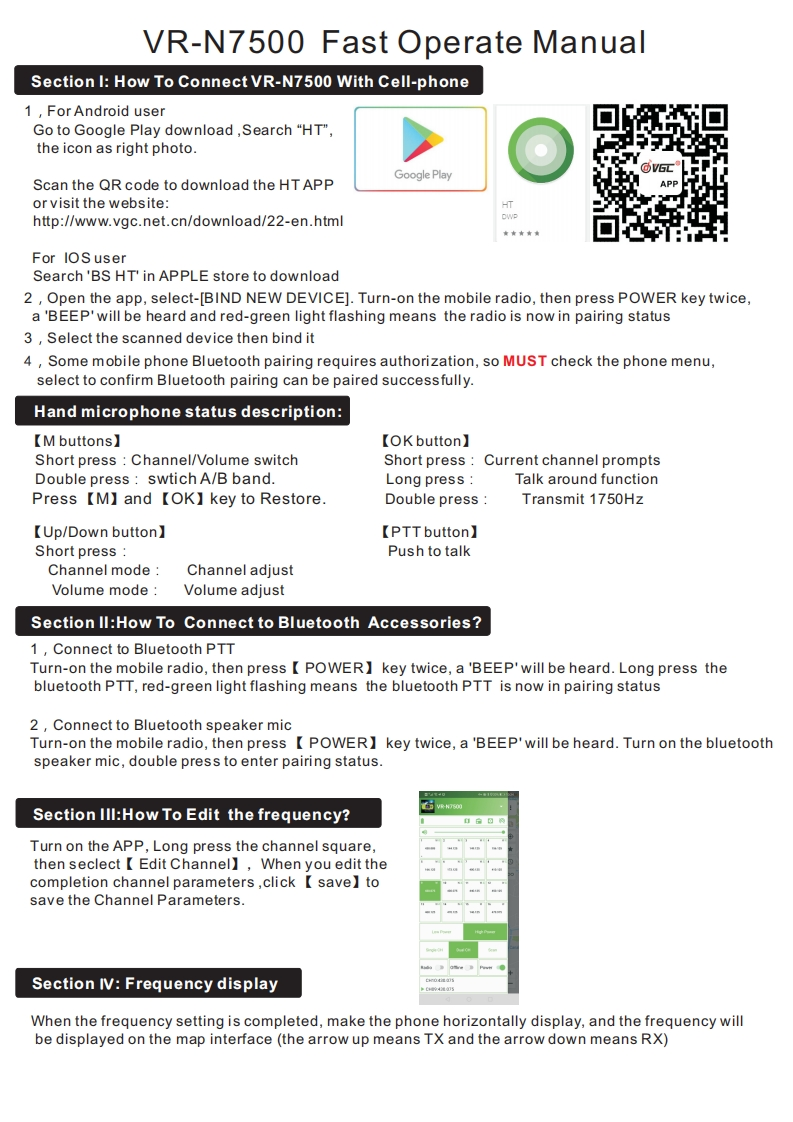

VR-N7500 Fast Operate ManualSection I:How To Connect VR-N7500 With Cell-phone1,For Android userGo to Google Play download,Search"HT",the icon as right photo.Google PlayScan the QR code to download the HT APPor visit the website:HThttp://www.vgc.net.cn/download/22-en.htmlDWP★南有有西For IOSuserSearch'BS HT'in APPLE store to download2,Open the app,select-[BIND NEW DEVICE].Turn-on the mobile radio,then press POWER key twice,a'BEEP'will be heard and red-green light flashing means the radio is now in pairing status3,Select the scanned device then bind it4 Some mobile phone Bluetooth pairing requires authorization,so MUST check the phone menu,select to confirm Bluetooth pairing can be paired successfully.Hand microphone status description:【M buttons】【OK button】Short press:Channel/Volume switchShort press Current channel promptsDouble press:swtich A/B band.Long press:Talk around functionPress【M】and【OK】key to Restore.Double pressTransmit 1750Hz【Up/Down button】【PTT button.】Short pressPush to talkChannel mode:Channel adjustVolume modeVolume adjustSection Il:How To Connect to Bluetooth Accessories?1,Connect to Bluetooth PTTTurn-on the mobile radio,then press POWER]key twice,a 'BEEP'will be heard.Long press thebluetooth PTT,red-green light flashing means the bluetooth PTT is now in pairing status2,Connect to Bluetooth speaker micTurn-on the mobile radio,then press POWER]key twice,a 'BEEP'will be heard.Turn on the bluetoothspeaker mic,double press to enter pairing status.Section Ill:How To Edit the frequency?Turn on the APP,Long press the channel square,then seclect【Edit Channel】,When you edit thecompletion channel parameters,click save]tosave the Channel Parameters.Section IV:Frequency displayWhen the frequency setting is completed,make the phone horizontally display,and the frequency willbe displayed on the map interface (the arrow up means TX and the arrow down means RX)
