Xiegu_X-108G_维修维护电器原理图手册

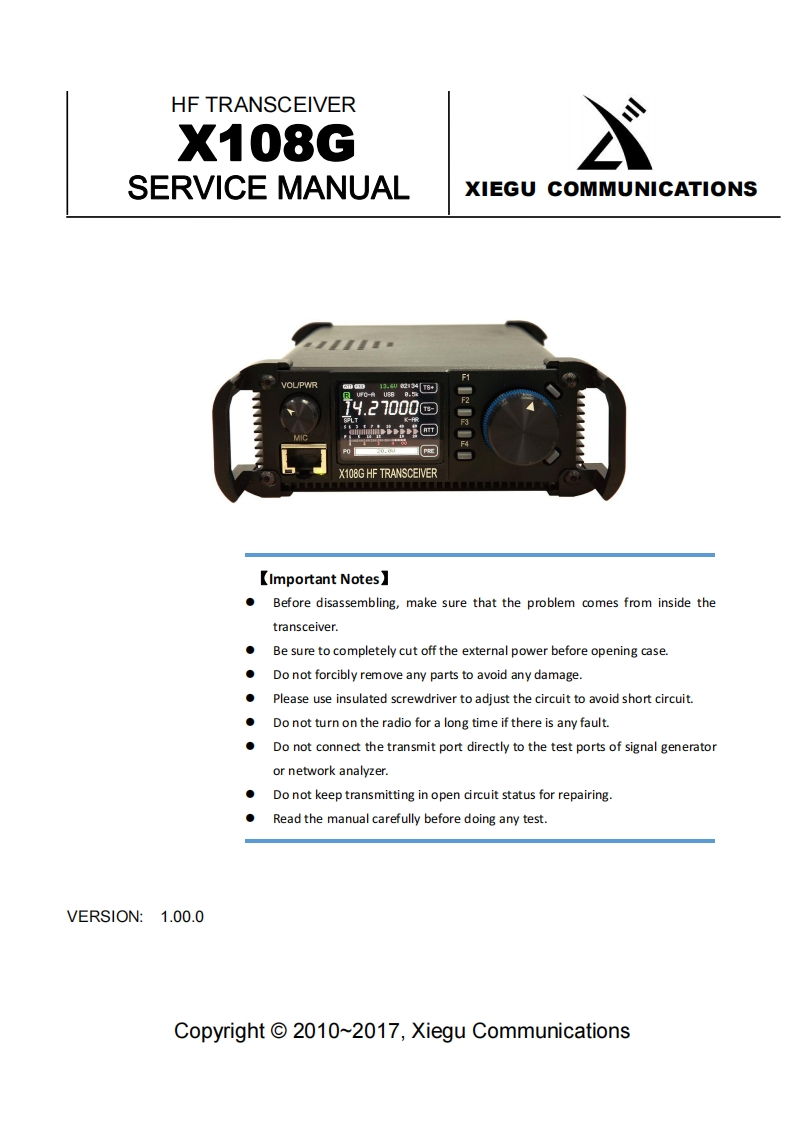

HF TRANSCEIVERX108GSERVICE MANUALXIEGU COMMUNICATIONSFVOU/PWR4.27000©X108G HF TRANSCEIVER【Important Notes.】Before disassembling,make sure that the problem comes from inside thetransceiver.●Be sure to completely cut off the external power before opening case.Do not forcibly remove any parts to avoid any damage.Please use insulated screwdriver to adjust the circuit to avoid short circuit.●Do not turn on the radio for a long time if there is any fault.Do not connect the transmit port directly to the test ports of signal generatoror network analyzer.●Do not keep transmitting in open circuit status for repairing.Read the manual carefully before doing any test.VERSION:1.00.0Copyright©2010~2017，Xiegu Communications
