Xiegu_X-6100_使用说明书手册_2022

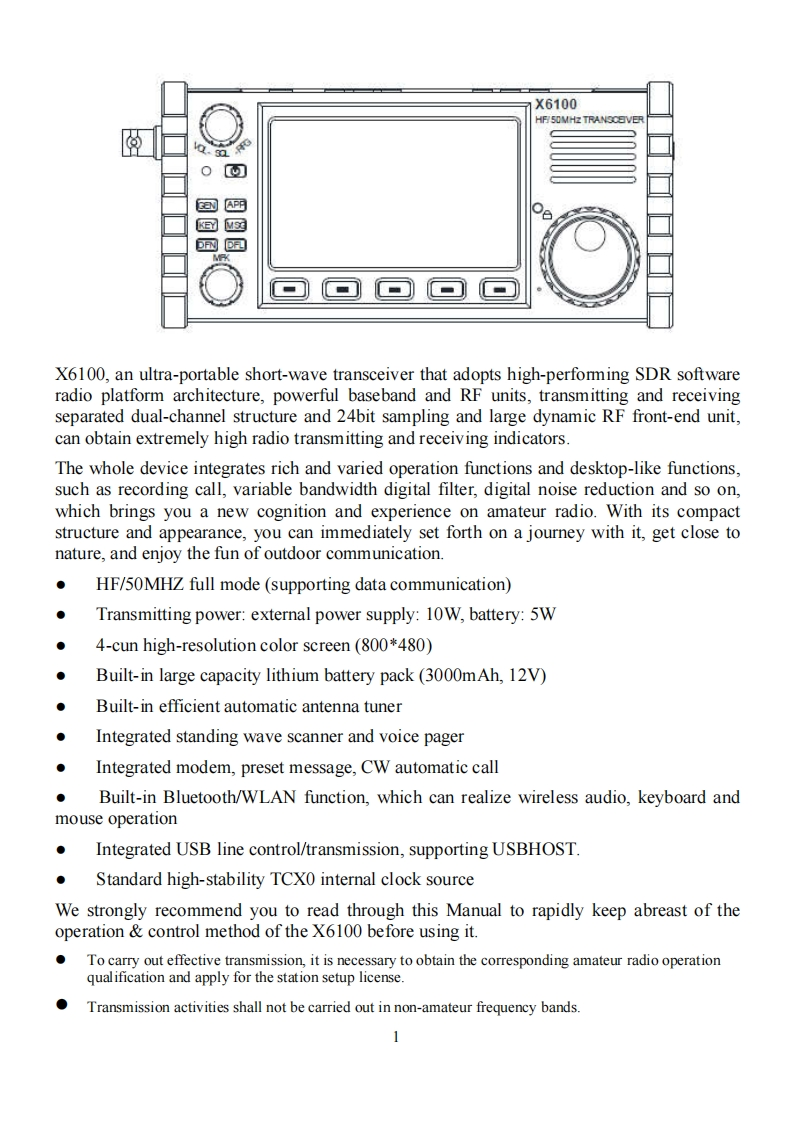

X6100HF/50MHz TRANSCSVER✉M国D网X6100,an ultra-portable short-wave transceiver that adopts high-perfomming SDR softwareradio platform architecture,powerful baseband and RF units,transmitting and receivingseparated dual-channel structure and 24bit sampling and large dynamic RF front-end unit,can obtain extremely high radio transmitting and receiving indicators.The whole device integrates rich and varied operation functions and desktop-like functions,such as recording call,variable bandwidth digital filter,digital noise reduction and so on,which brings you a new cognition and experience on amateur radio.With its compactstructure and appearance,you can immediately set forth on a journey with it,get close tonature,and enjoy the fun of outdoor communication.HF/50MHZ full mode (supporting data communication)Transmitting power:external power supply:10W,battery:5W●4-cun high-resolution color screen(800*480)Built-in large capacity lithium battery pack (3000mAh,12V)●Built-in efficient automatic antenna tunerIntegrated standing wave scanner and voice pager●Integrated modem,preset message,CW automatic call●Built-in Bluetooth/WLAN function,which can realize wireless audio,keyboard andmouse operation.Integrated USB line control/transmission,supporting USBHOST.●Standard high-stability TCXO internal clock sourceWe strongly recommend you to read through this Manual to rapidly keep abreast of theoperation control method of the X6100 before using it.To carry out effective transmission,it is necessary to obtain the corresponding amateur radio operationqualification and apply for the station setup license.Transmission activities shall not be carried out in non-amateur frequency bands.1
