编号1：建伍KENWOOD-TKR-850_B51-8789-00维修图纸手册

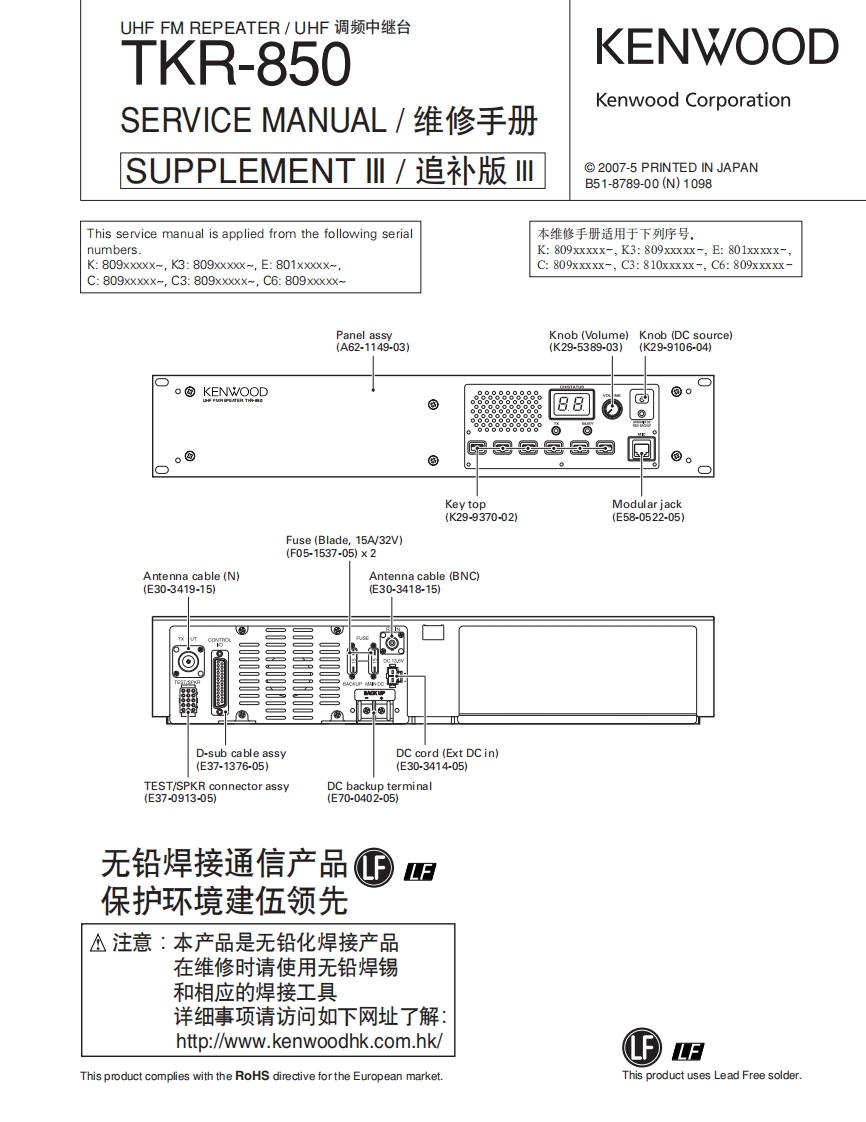

UHF FM REPEATER/UHF调频中继台TKR-850KENWOODKenwood CorporationSERVICE MANUAL/维修手册SUPPLEMENT IIL/追补版Ⅲ2007-5 PRINTED IN JAPANB51-8789-00(N)1098This service manual is applied from the following serial本维修手册适用于下列序号，numbers.K:809xxxxx-,K3:809xxxxx-,E:801xxxxx-,K:809xxxxx-,K3:809xxxxx-,E:801xxxxx-,C:809xxxxx-,C3:810xxxxx-C6:809xxxxxC:809xxxxx-,C3:809xxxxx-,C6:809xxxxx-Panel assyKnob(Volume)Knob (DC source)(A62-.1149-03)(K29-5389-03)(K29-9106-04)KENWOOD⑧88©oKey topModular jack(K29-9370-02)(E58-0522-05)Fuse(Blade,15A/32V)(fF05-1537-05)X2Antenna cable (N)Antenna cable (BNC)(E303419-15)(E30-3418.15)D-sub cable assyDC cord (Ext DCin)(E37-1376-05)(E30-3414-05)TEST/SPKR connector assyDC backup terminalE37-0913-05)(E70-0402-05)无铅焊接通信产品保护环境建伍领先△注意：本产品是无铅化焊接产品在维修时请使用无铅焊锡和相应的焊接工具详细事项请访问如下网址了解：http://www.kenwoodhk.com.hk/LFThis product complies with the RoHS directive for the European market.This product uses Lead Free solder.
