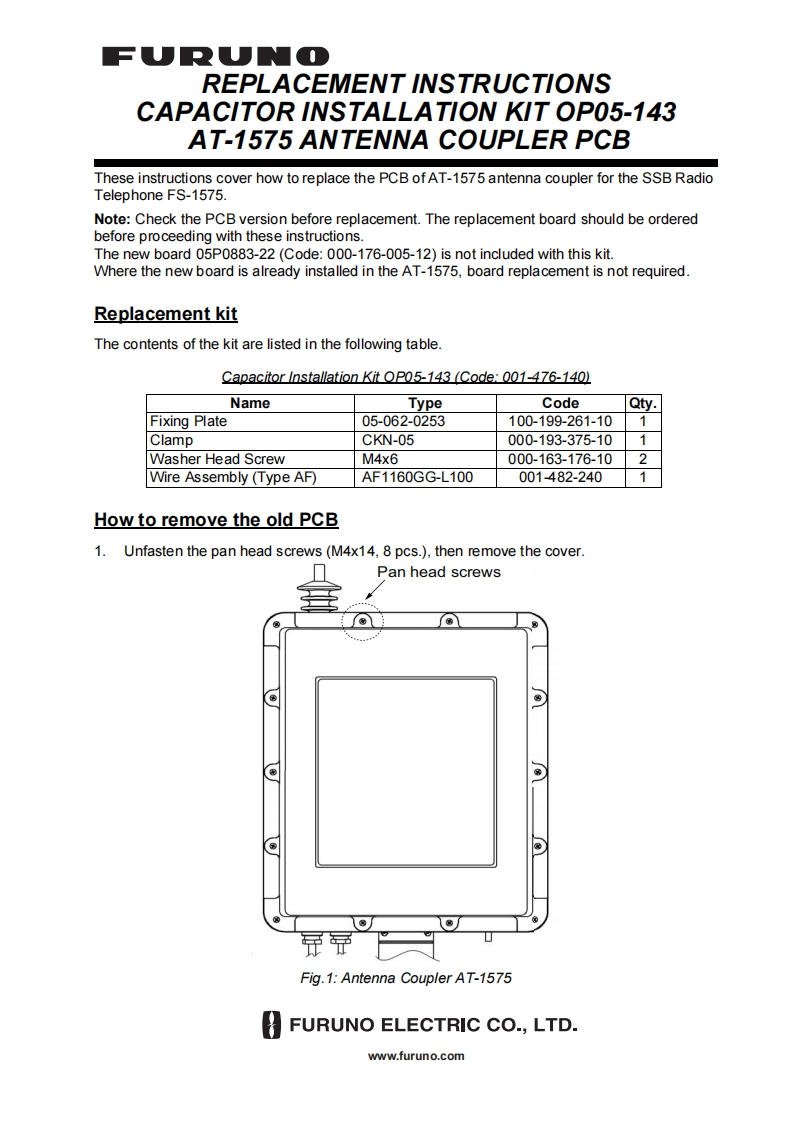

■FPMREPLACEMENT INSTRUCTIONSCAPACITOR INSTALLATION KIT OP05-143AT-1575 ANTENNA COUPLER PCBThese instructions cover how to replace the PCB of AT-1575 antenna coupler for the SSB RadioTelephone FS-1575.Note:Check the PCB version before replacement.The replacement board should be orderedbefore proceeding with these instructions.The new board 05P0883-22(Code:000-176-005-12)is not included with this kit.Where the new board is already installed in the AT-1575,board replacement is not required.Replacement kitThe contents of the kit are listed in the following table.Capacitor Installation Kit OP05-143 (Code:001-476-140)NameTypeCodeQty.Fixing Plate05-062-0253100-199-261-101ClampCKN-05000-193-375-10Washer Head ScrewM4x6000-163-176-102Wire Assembly(Type AF)AF1160GG-L100001-482-240How to remove the old PCB1.Unfasten the pan head screws (M4x14,8 pcs.),then remove the cover.Pan head screwsFig.1:Antenna Coupler AT-1575FURUNO ELECTRIC CO.,LTD.www.furuno.com
