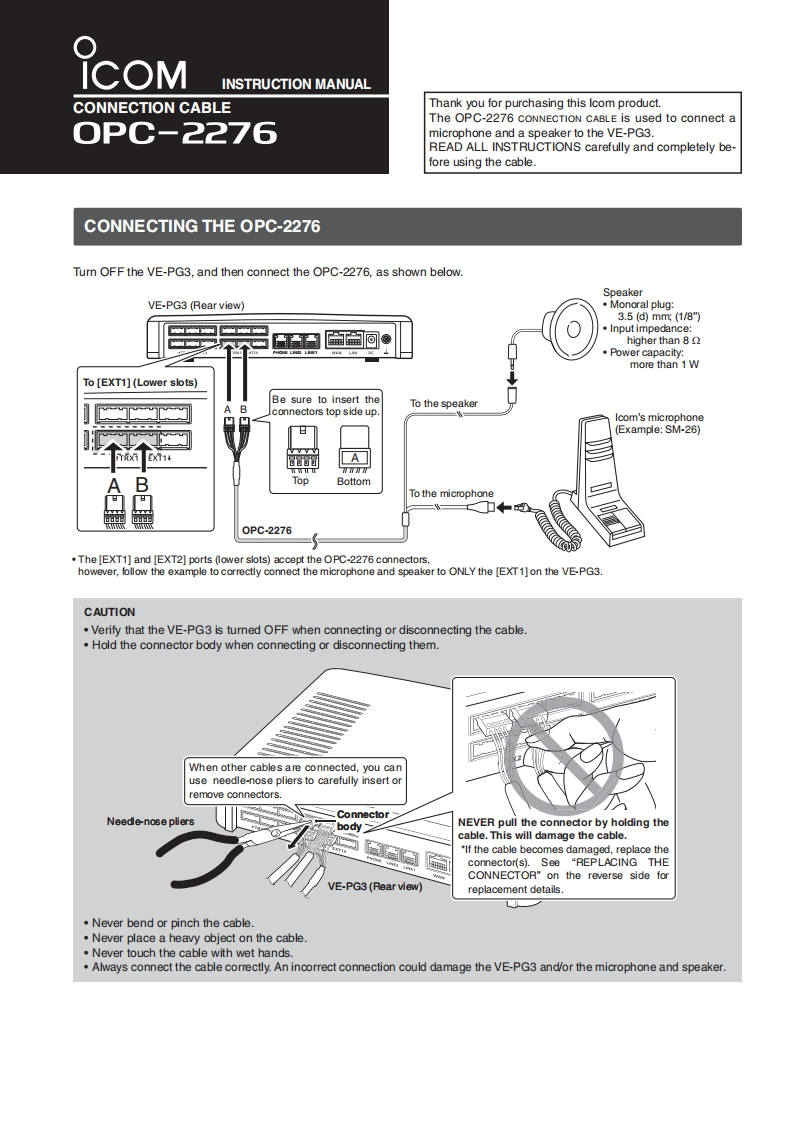

TCOMINSTRUCTION MANUALCONNECTION CABLEThank you for purchasing this lcom product.The OPC-2276 CONNECTION CABLE is used to connect aOPC-2276microphone and a speaker to the VE-PG3.READ ALL INSTRUCTIONS carefully and completely before using the cable.CONNECTING THE OPC-2276Turn OFF the VE-PG3,and then connect the OPC-2276,as shown below.SpeakerVE-PG3(Rear view)·Monoral plug:3.5(dmm(1/8Inputimpedance:画血回@higher than 8·Power capacity:more than 1WTo [EXT1](Lower slots)Be sure to insert theTo the speakerAconnectors top side upIcom's microphone(Example:SM-26)ABottomTo the microphone0PC-2276.The [EXT1]and [EXT2]ports (lower slots)accept the OPC-2276 connectors,however,follow the example to correctly connect the microphone and speaker to ONLY the [EXT1]on the VE-PG3.CAUTIONVerify that the VE-PG3 is turned OFF when connecting or disconnecting the cable.Hold the connector body when connecting or disconnecting them.When other cables are connected,you canuse needle-nose pliers to carefully insert orremove connectors.ConnectorNeede-nose pliersbodyNEVER pull the connector by holding thecable.This will damage the cable.*If the cable becomes damaged,replace theconnector(s).See "REPLACING THECONNECTOR"on the reverse side forVE-PG3(Rear view)replacement details.LNever bend or pinch the cable.Never place a heavy object on the cable.Never touch the cable with wet hands.Always connect the cable correctly.An incorrect connection could damage the VE-PG3 andor the microphone and speaker
