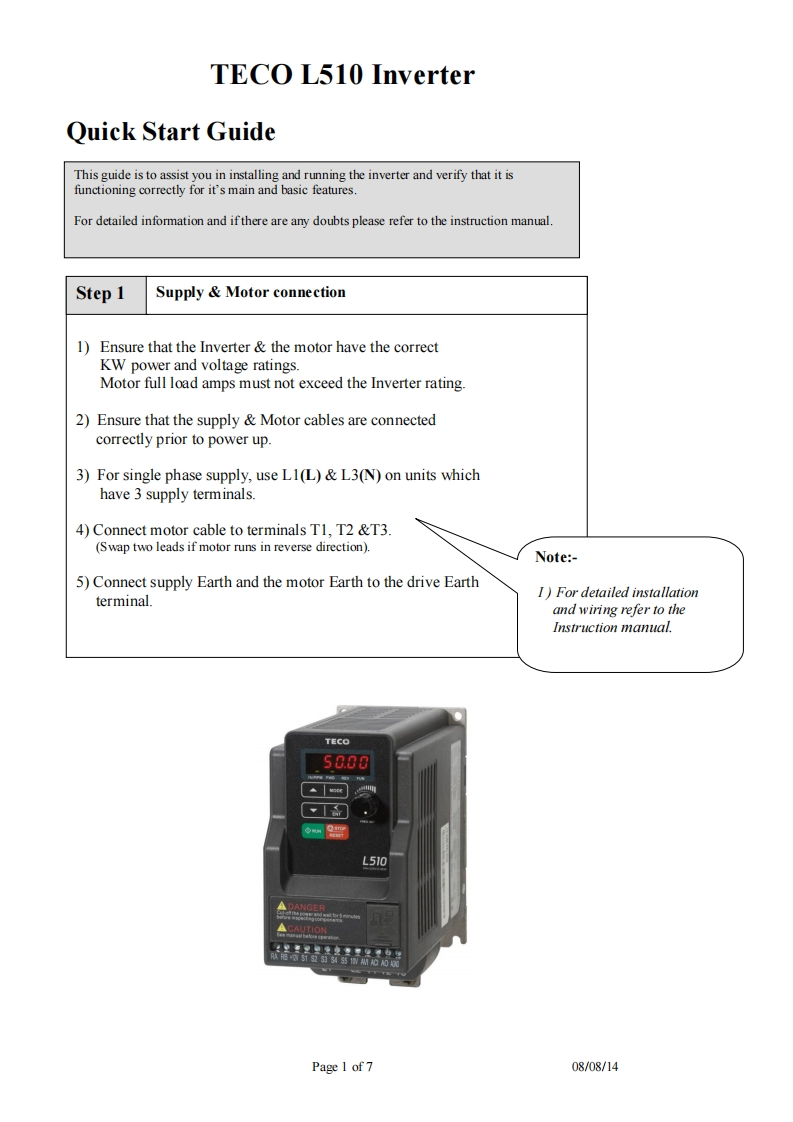

TECO L510 InverterQuick Start GuideThis guide is to assist you in installing and running the inverter and verify that it isfunctioning correctly for it's main and basic features.For detailed information and ifthere are any doubts please refer to the instruction manualStep1Supply Motor connection1)Ensure that the Inverter the motor have the correctKW power and voltage ratings.Motor full load amps must not exceed the Inverter rating.2)Ensure that the supply Motor cables are connectedcorrectly prior to power up.3)For single phase supply,use L1(L)&L3(N)on units whichhave 3 supply terminals.4)Connect motor cable to terminals T1,T2 &T3.(Swap two leads if motor runs in reverse direction).Note:-5)Connect supply Earth and the motor Earth to the drive Earth1)For detailed installationterminaland wiring refer to theInstruction manual.TECO5000-◆网gL510ANGERPage 1 of 708/08/14
