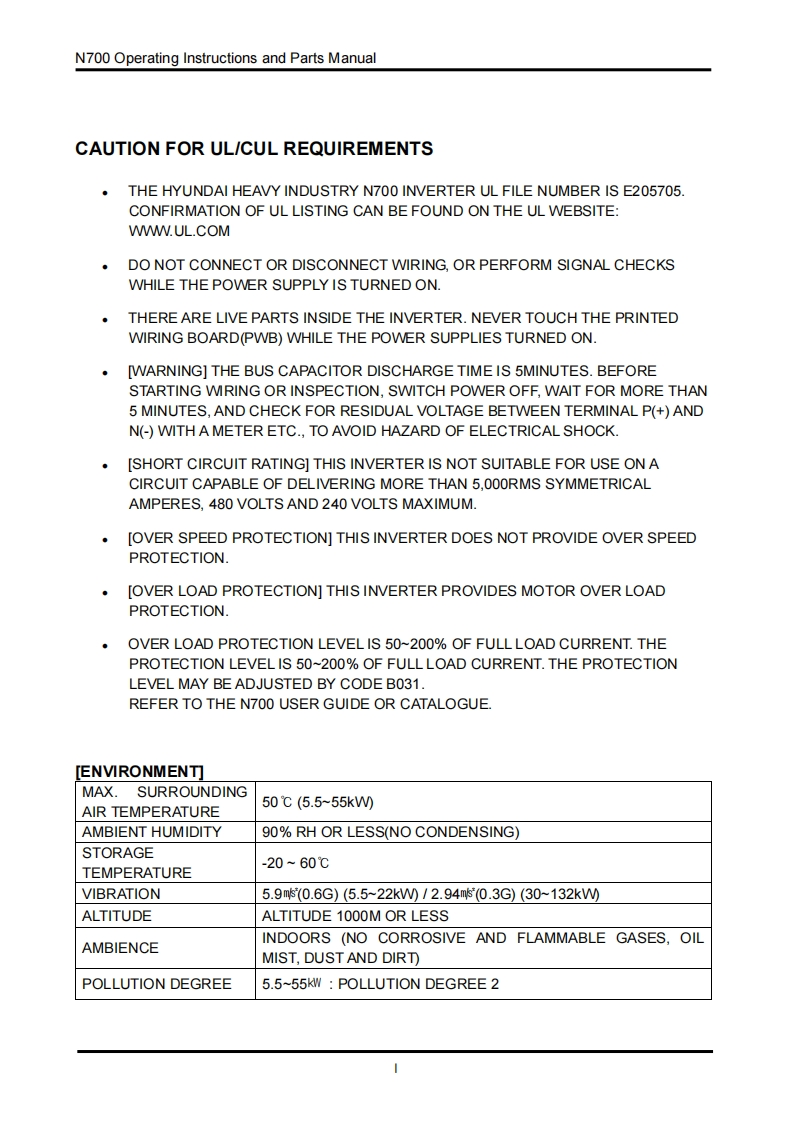

N700 Operating Instructions and Parts ManualCAUTION FOR UL/CUL REQUIREMENTSTHE HYUNDAI HEAVY INDUSTRY N700 INVERTER UL FILE NUMBER IS E205705.CONFIRMATION OF UL LISTING CAN BE FOUND ON THE UL WEBSITE:W.UL.COMDO NOT CONNECT OR DISCONNECT WIRING,OR PERFORM SIGNAL CHECKSWHILE THE POWER SUPPLY IS TURNED ON.THERE ARE LIVE PARTS INSIDE THE INVERTER.NEVER TOUCH THE PRINTEDWIRING BOARD(PWB)WHILE THE POWER SUPPLIES TURNED ON.[WARNING]THE BUS CAPACITOR DISCHARGE TIME IS 5MINUTES.BEFORESTARTING WIRING OR INSPECTION,SWITCH POWER OFF,WAIT FOR MORE THAN5 MINUTES,AND CHECK FOR RESIDUAL VOLTAGE BETWEEN TERMINAL P(+)ANDN(-)WITH A METER ETC.,TO AVOID HAZARD OF ELECTRICAL SHOCK.[SHORT CIRCUIT RATING]THIS INVERTER IS NOT SUITABLE FOR USE ON ACIRCUIT CAPABLE OF DELIVERING MORE THAN 5,000RMS SYMMETRICALAMPERES,480 VOLTS AND 240 VOLTS MAXIMUM.[OVER SPEED PROTECTION]THIS INVERTER DOES NOT PROVIDE OVER SPEEDPROTECTION.[OVER LOAD PROTECTION]THIS INVERTER PROVIDES MOTOR OVER LOADPROTECTION.OVER LOAD PROTECTION LEVEL IS 50~200%OF FULL LOAD CURRENT.THEPROTECTION LEVEL IS 50~200%OF FULL LOAD CURRENT.THE PROTECTIONLEVEL MAY BE ADJUSTED BY CODE B031.REFER TO THE N700 USER GUIDE OR CATALOGUE.[ENVIRONMENT]MAX.SURROUNDINGAIR TEMPERATURE50℃(5.5-55kW0AMBIENT HUMIDITY90%RH OR LESS(NO CONDENSING)STORAGETEMPERATURE-20~60℃VIBRATION5.9$(0.6G)(5.5-22kW)/2.94$(0.3G)(30~132k)ALTITUDEALTITUDE 1000M OR LESSINDOORS (NO CORROSIVE AND FLAMMABLE GASES,OILAMBIENCEMIST,DUST AND DIRT)POLLUTION DEGREE5.5~55KW POLLUTION DEGREE 2
