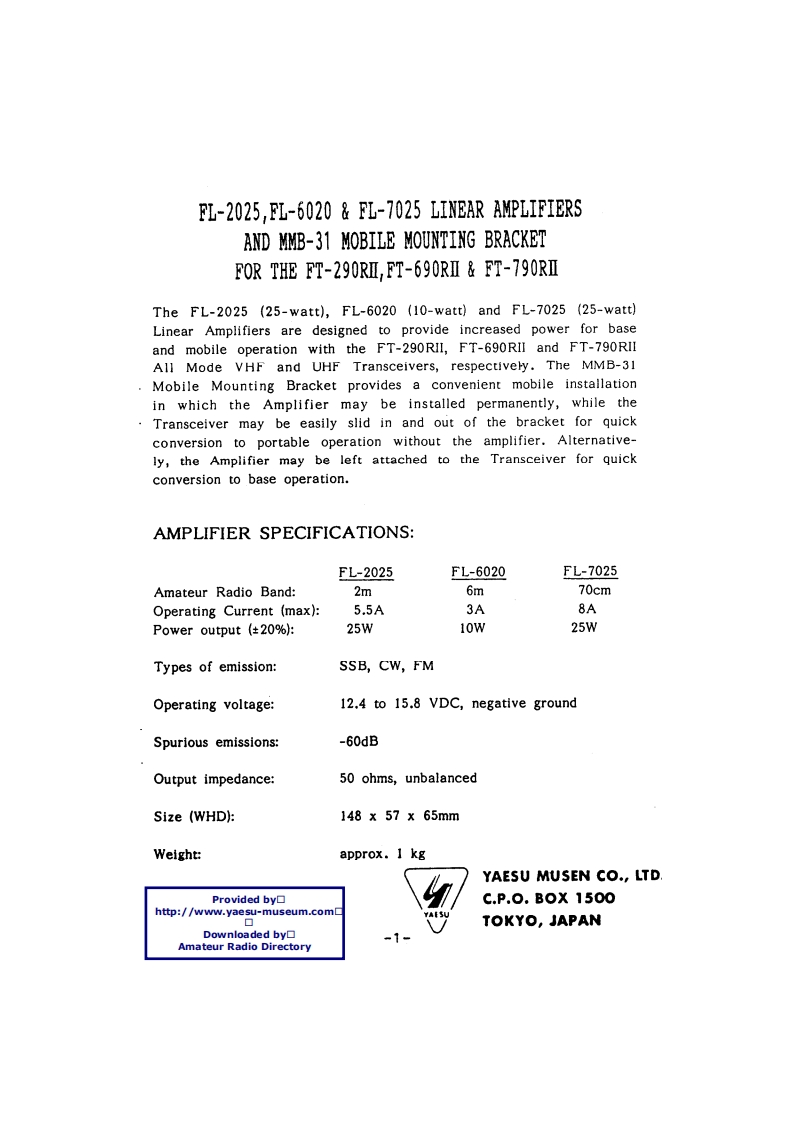

FL-2025,FL-6020 FL-7025 LINEAR AMPLIFIERSAND MMB-31 MOBILE MOUNTING BRACKETFOR THE FT-290RII,FT-690RI FT-790RIThe FL-2025 (25-watt),FL-6020 (10-watt)and FL-7025 (25-watt)Linear Amplifiers are designed to provide increased power for baseand mobile operation with the FT-290RII,FT-690RII and FT-790RIIAll Mode VHF and UHF Transceivers,respectively.The MMB-31Mobile Mounting Bracket provides a convenient mobile installationin which the Amplifier may be installed permanently,while theTransceiver may be easily slid in and out of the bracket for quickconversion to portable operation without the amplifier.Alternative-ly,the Amplifier may be left attached to the Transceiver for quickconversion to base operation.AMPLIFIER SPECIFICATIONS:FL-2025FL-6020FL-7025Amateur Radio Band:2m6m70cmOperating Current (max):5.5A3A8APower output(±20%25W10W25WTypes of emission:SSB,CW,FMOperating voltage:12.4 to 15.8 VDC,negative groundSpurious emissions:-60dBOutput impedance:50 ohms,unbalancedSize (WHD):148x57x65mmWeight:approx.】kgYAESU MUSEN CO.,LTD.Provided by▣C.P.0.BoX1500http://www.yaesu-museum.comCTOKYO,JAPANDownloaded by▣Amateur Radio Directory
