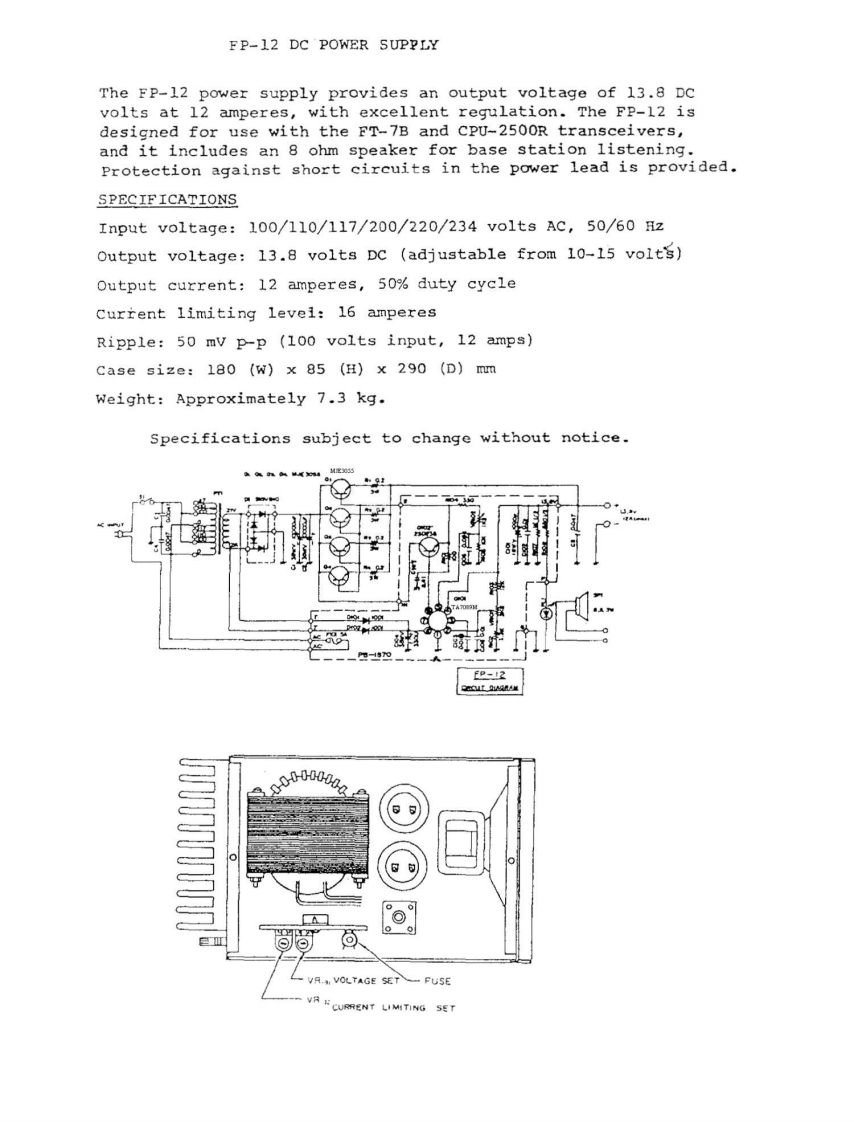

FP-12 DC POWER SUPPLYThe FP-12 power supply provides an output voltage of 13.8 DCvolts at 12 amperes,with excellent regulation.The FP-12 isdesigned for use with the FT-7B and CPU-2500R transceivers,and it includes an 8 ohm speaker for base station listening.Protection against short circuits in the power lead is provided.SPECIFICATIONSInput vo1tage:100/110/117/200/220/234vo1tsAc,50/60HzOutput voltage:13.8 volts DC (adjustable from 10-15 volt's)Output current:12 amperes,50%duty cycleCurtent limiting levei:16 amperesRipple:50 mv p-p (100 volts input,12 amps)Case size:180 (W)x 85 (H)x 290 (D)mmWeight:Approximately 7.3 kg.Specifications subject to change without notice.EP-12BROLE DIAGRAMVR.VOLTAGE SETFUSEVR E CURRENT LIMITING SET
