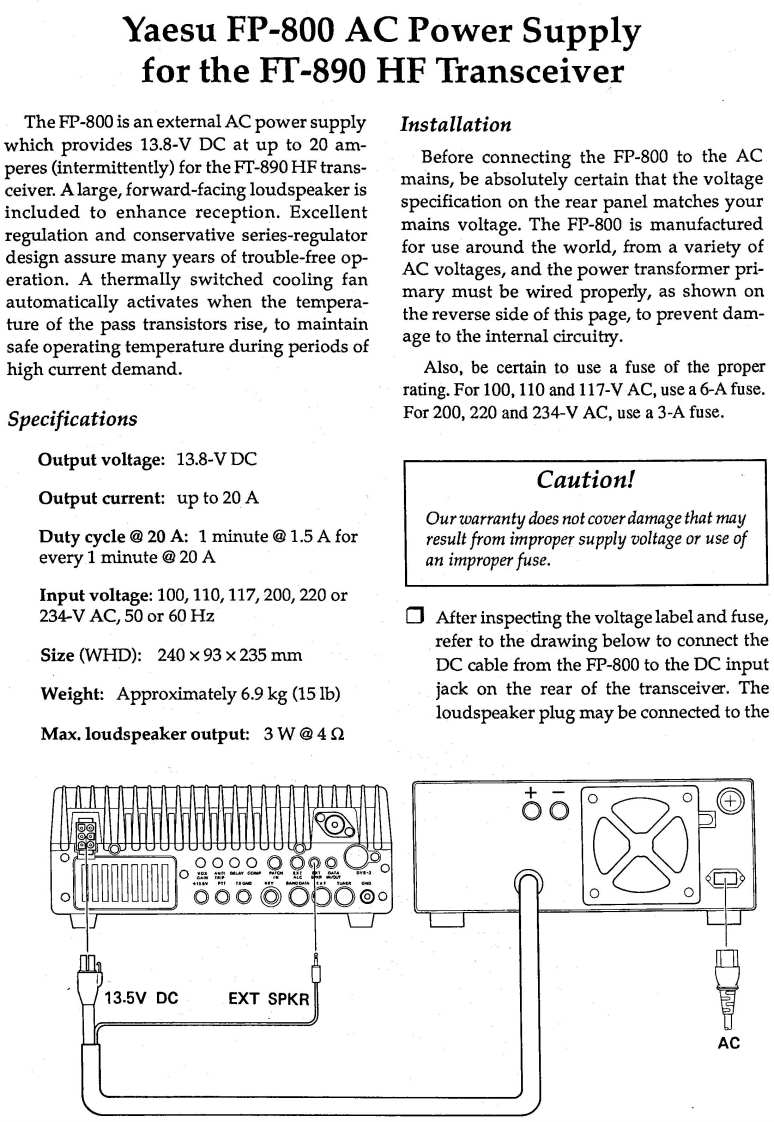

Yaesu FP-800 AC Power Supplyfor the FT-890 HF TransceiverThe FP-800 is an external AC power supply Installationwhich provides 13.8-V DC at up to 20 am-peres(intermittently)for the FT-890HF trans-Before connecting the FP-800 to the ACceiver.Alarge,forward-facing loudspeaker ismains,be absolutely certain that the voltageincluded to enhance reception.Excellentspecification on the rear panel matches yourregulation and conservative series-regulatormains voltage.The FP-800 is manufactureddesign assure many years of trouble-free op-for use around the world,from a variety oferation.A thermally switched cooling fanAC voltages,and the power transformer pri-automatically activates when the tempera-mary must be wired properly,as shown onture of the pass transistors rise,to maintainthe reverse side of this page,to prevent dam-safe operating temperature during periods ofage to the internal circuitry.high current demand.Also,be certain to use a fuse of the properrating.For 100,110 and 117-V AC,use a 6-A fuse.SpecificationsFor 200,220 and 234-V AC,use a 3-A fuse.Output voltage:13.8-V DCCaution!Output current:up to 20AOur warranty does not cover damage that mayDuty cycle 20 A:1 minute @1.5 A forresult from improper supply voltage or use ofevery 1 minute 20 Aan improper fuse.Input voltage:100,110,117,200,220 or234-V AC,50 or 60 HzAfter inspecting the voltage label and fuse,refer to the drawing below to connect theSize(WIHD:240×93×235mmDC cable from the FP-800 to the DC inputWeight:Approximately 6.9 kg(15 Ib)jack on the rear of the transceiver.Theloudspeaker plug may be connected to theMax.loudspeaker output:3 W@413.5V DCEXT SPKRAC
