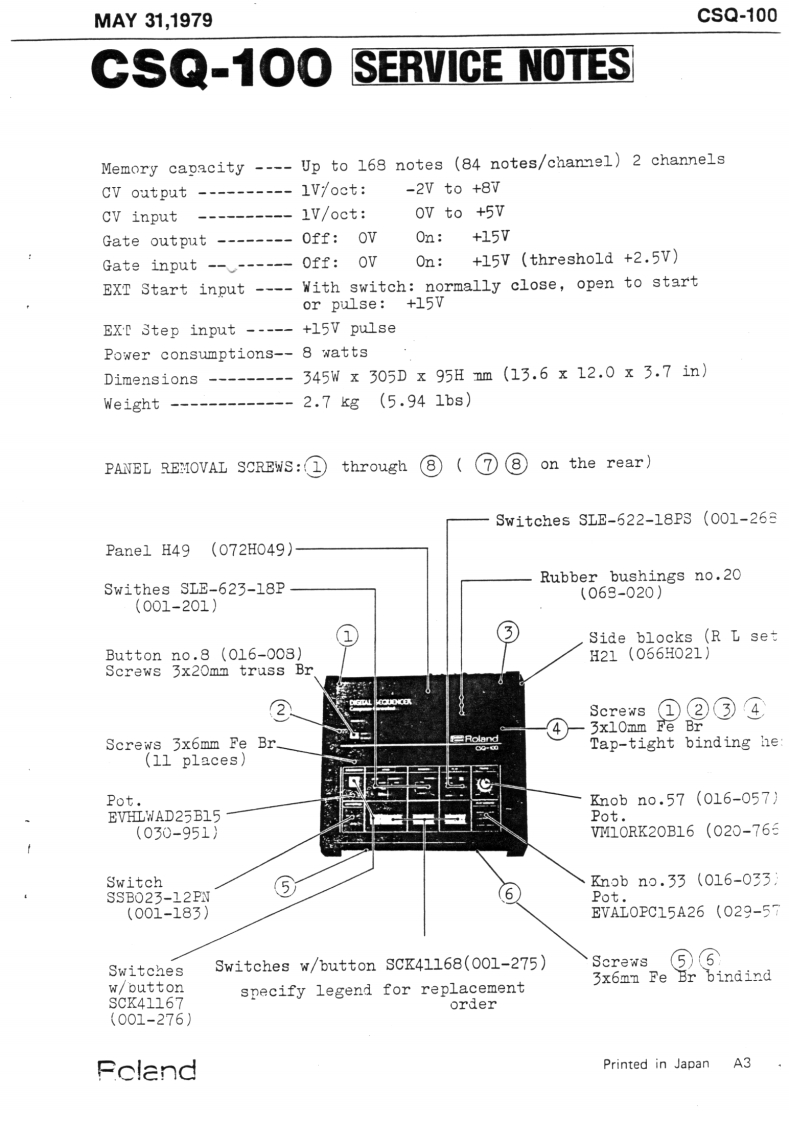

MAY31,1979CSQ-100CSQ-100 SERVICE NOTESMemory capacity ----Up to 168 notes (84 notes/channel)2 channelsCV output ----------1V/oct:-2V to +8VCV input1V/oct:OV to +5VGate output -------Off:OV0m:+15VGate input -------Off:OV0n:+15V (threshold +2.5V)EXT Start input ----With switch:normally close,open to startor pulse:+15VEX Step input -----+15V pulsePower consumptions--8 wattsDimensions --------345Wx305Dx95Hnm(13.6x12.0x3.7in)Weight2.7kg（5.941bs)PANEL REMOVAL SCREWS:1through88on the rear)Switches SLE-622-18PS (001-265Pane1H49（072H049)Rubber bushings no.20Swithes SLE-623-18P(069-020)(001-201)1Side blocks (R L setButton no.8 (016-008)H21（056H021)Screws3x20mmtruss Br②Screws(1)②③43x10mmFe BrScrews 3x6mm FeBrTap-tight binding he(11 places)Pot.Knob ne0.57(016-057)EVHLWAD25B15Pot.(030-951M10RK20B16(020-769SwitchSSB023-12PN⑤Knob no.33(016-0336Pot.(001-183)EVAL0PC15A26(029-57SwitchesSwitches w/button SCK41168(001-275)Screws⑤⑤3x6mm Fe Br bindindw/buttonspecify legend for replacementSCK41167order(001-276)FclandPrinted in JapanA3
