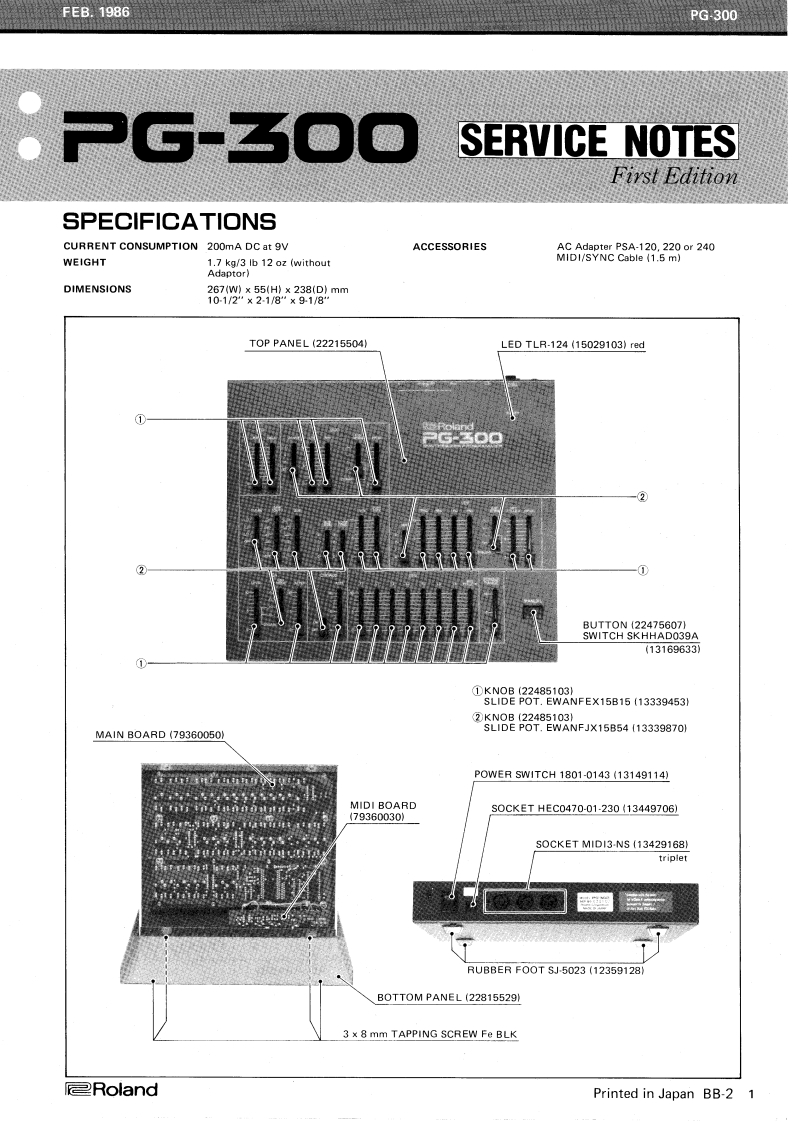

FE8.1986PG300PG-300SERVICE NOTESFirst editionSPECIFICATIONSCURRENT CONSUMPTION 200mA DC at 9VACCESSORIESAC Adapter PSA-120,220 or 240WEIGHT1.7 kg/3 Ib 12 oz (withoutMIDI/SYNC Cable (1.5 m)Adaptor)DIMENSIONS267(W0X55(HX238(D1mm10-1/2”×2-1/8”x9.1/8TOP PANEL (22215504)LED TLR-124(15029103)red①S-3002BUTT0N(22475607SWITCH SKHHAD039A(13169633)①KN0B(224851031SLIDE POT.EWANFEX15B15 (13339453)2KN0B(224851031SLIDE POT.EWANFJX15B54 (13339870)MAIN BOARD (79360050)P0 WER SWITCH1801-0143(13149114)MIDI BOARDS0 CKET HEC0470-01-230(13449706)(79360030SOCKET MIDI3-NS (13429168)tripletRUBBER F00TSJ5023(123591281BOTTOM PANEL(22815529)3 x 8 mm TAPPING SCREW Fe BLKRolandPrinted in Japan BB-2 1
