罗兰Roland-PR-100-Digital-Sequencer-Service-Manual维修服务手册说明书含电器原理图

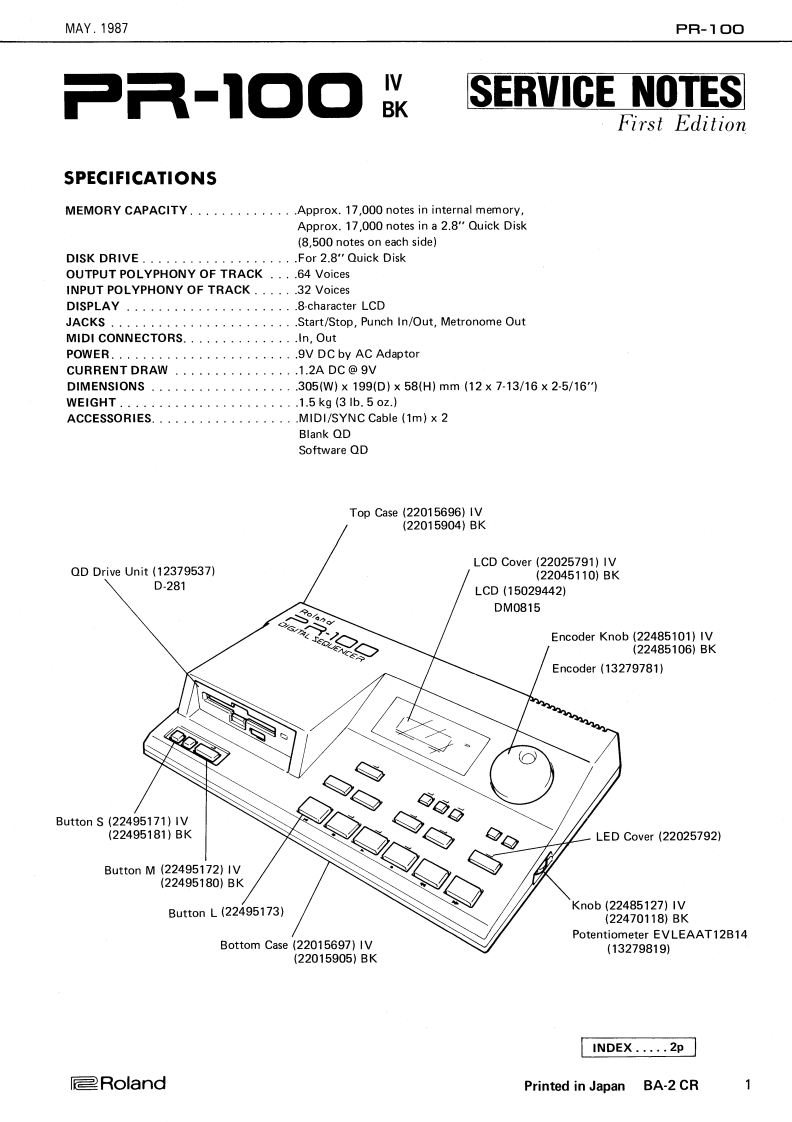

MAY.1987PR-100P只-1▣OIVBKSERVICE NOTESFirst EditionSPECIFICATIONSMEMORY CAPACITY..............Approx.17,000 notes in internal memory,Approx.17,000 notes in a 2.8"Quick Disk(8,500 notes on each side)DISK DRIVE....·.····.,.,.For2.8"Quick DiskOUTPUT POLYPHONY OF TRACK....64 VoicesINPUT POLYPHONY OF TRACK......32 VoicesDISPLAY......................8-character LCDJACKS.·.Start/Stop,Punch In/Out,Metronome OutMIDI CONNECTORS.,,,,ln,0utPOWER...9V DC by AC AdaptorCURRENT DRAW.,··,,.1.2ADC@9VDIMENSIONS305W)×199(D)×58H)mm(12×7.13/16×2-5/16)WEIGHT.......................1.5 kg(3 lb.5 oz.)ACCESS0RIES..·.··.,·.···.MIDI/SYNC Cable (1m)x 2Blank QDSoftware QDTop Ca5e(22015696)1V(22015904}BKLCD Cover (22025791)IVQD Drive Unit (12379537)(22045110)BKD-281LCD(15029442)DM0815Encoder Knob (22485101)IV(22485106)BKEncoder (13279781)Button S (22495171)IV白回回(22495181)BK00LED Cover (22025792)Button M (22495172)IV(22495180)BKButton L (22495173)Knob(22485127)IV(22470118)BKPotentiometer EVLEAAT12B14Bottom Case (22015697)IV(13279819)(22015905)BKINDEX.....2pRolandPrinted in JapanBA-2 CR1
