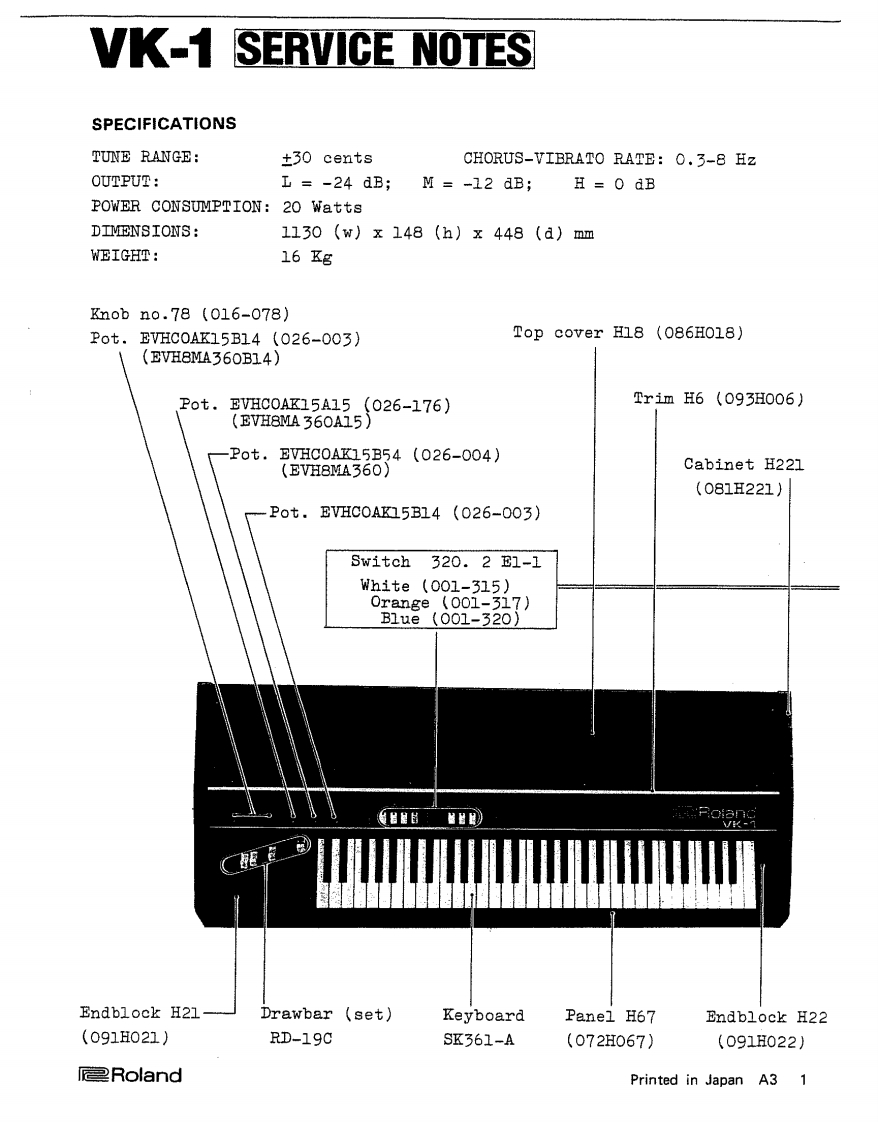

VK-1 SERVICE NOTESSPECIFICATIONSTUNE RANGE:±30 centsCHORUS-VIBRATO RATE:O.3-8 HzOUTPU四：L=-24dB;M=-12dB;H=0 dBPOWER CONSUMPTION:20 WattsDIMENSIONS:1130(w)x148(h)x448（d)mmWEIGHT:16 KgKnob no.78(016-078)Pot.EVHC0AK15B14(026-003)Top cover H18 (086H018)(EVE8MA360B14)）Pot.EVHC0AK15A15(026-176)rimH6(093H006)(EVH8MA 360A15)一Pot.EVHC0AK15B54（026-004)(EVH8MA360)Cabinet H221(081H221)Pot,EVHC0A5B14（026-003)Switch320.21-1Wh1te(001-315)0 range(001-317)B1ue(001-320)VK-1Endb1oc业H21-Drawbar（set)KeyboardPanel H67Endblock H22(091H021)RD-19CSK361-A(072H067)(091H022)RolandPrinted in Japan A3 1
