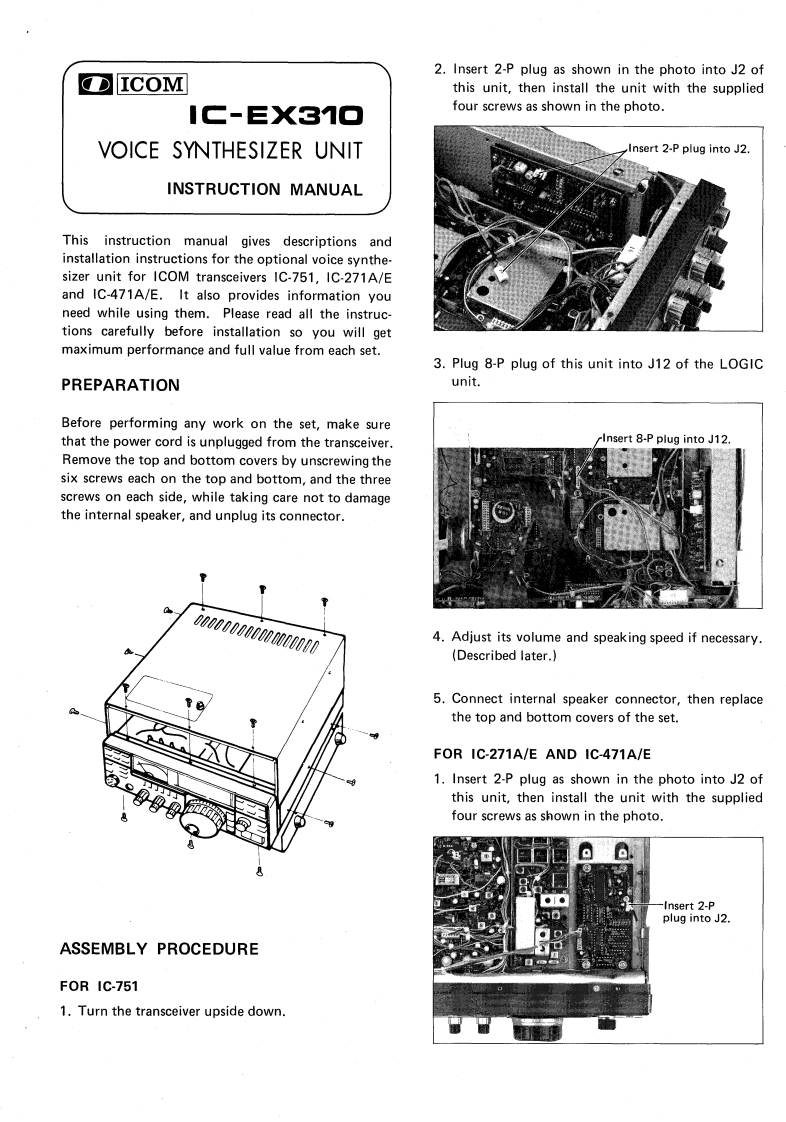

2.Insert 2-P plug as shown in the photo into J2 ofICOMthis unit,then install the unit with the suppliedIG-EX3M▣four screws as shown in the photo.VOICE SYNTHESIZER UNITInsert 2-P plug into J2.INSTRUCTION MANUALThis instruction manual gives descriptions andinstallation instructions for the optional voice synthe-sizer unit for ICOM transceivers IC-751,IC-271A/Eand IC-471A/E.It also provides information youneed while using them.Please read all the instruc-tions carefully before installation so you will getmaximum performance and full value from each set.3.Plug 8-P plug of this unit into J12 of the LOGICPREPARATIONunit.Before performing any work on the set,make surethat the power cord is unplugged from the transceiver.Insert 8-P plug into J12.Remove the top and bottom covers by unscrewing thesix screws each on the top and bottom,and the threescrews on each side,while taking care not to damagethe internal speaker,and unplug its connector.cooo000ocononeccf4.Adjust its volume and speaking speed if necessary.(Described later.5.Connect internal speaker connector,then replacethe top and bottom covers of the set.0FOR IC-271A/E AND IC-471A/E1.Insert 2-P plug as shown in the photo into J2 ofthis unit,then install the unit with the suppliedfour screws as shown in the photo.Insert 2-Pplug into J2.ASSEMBLY PROCEDUREF0R1C-7511.Turn the transceiver upside down.
