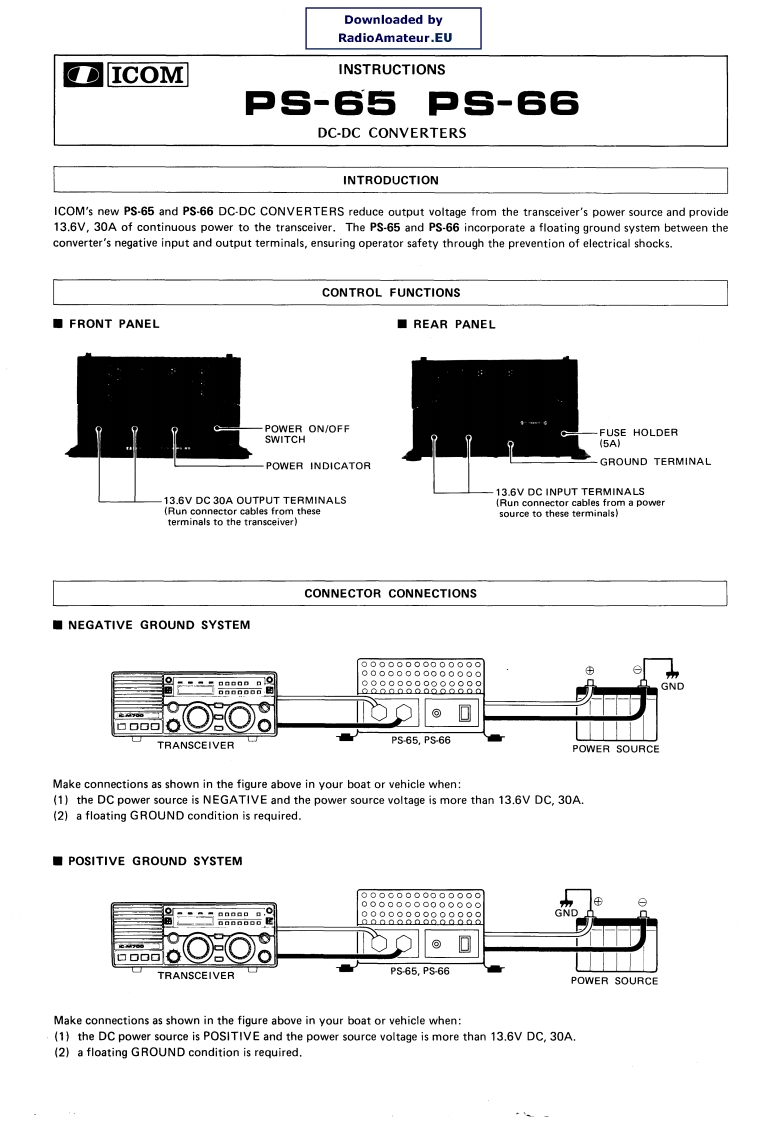

Downloaded byRadioAmateur.EUICOMINSTRUCTIONSPS-65PS-66DC-DC CONVERTERSINTRODUCTIONICOM's new PS-65 and PS-66 DC-DC CONVERTERS reduce output voltage from the transceiver's power source and provide13.6V,30A of continuous power to the transceiver.The PS-65 and PS-66 incorporate a floating ground system between theconverter's negative input and output terminals,ensuring operator safety through the prevention of electrical shocks.CONTROL FUNCTIONS■FRONT PANEL■REAR PANELPOWER ON/OFFFUSE HOLDERSWITCH(5APOWER INDICATORGROUND TERMINAL13.6V DC INPUT TERMINALS13.6V DC 30A OUTPUT TERMINALS(Run connector cables from theseoCncooea9mapoerterminals to the transceiver)CONNECTOR CONNECTIONSNEGATIVE GROUND SYSTEM000000000000000000000000000088888888888888NDTRANSCEIVERP5-65,PS-66POWER SOURCEMake connections as shown in the figure above in your boat or vehicle when:(1)the DC power source is NEGATIVE and the power source voltage is more than 13.6V DC,30A.(2)a floating GROUND condition is required.POSITIVE GROUND SYSTEM8888888888888888888888888888GND口▣TRANSCEIVERPS-65,PS-66POWER SOURCEMake connections as shown in the figure above in your boat or vehicle when:(1)the DC power source is POSITIVE and the power source voltage is more than 13.6V DC,30A.(2)a floating GROUND condition is required.
