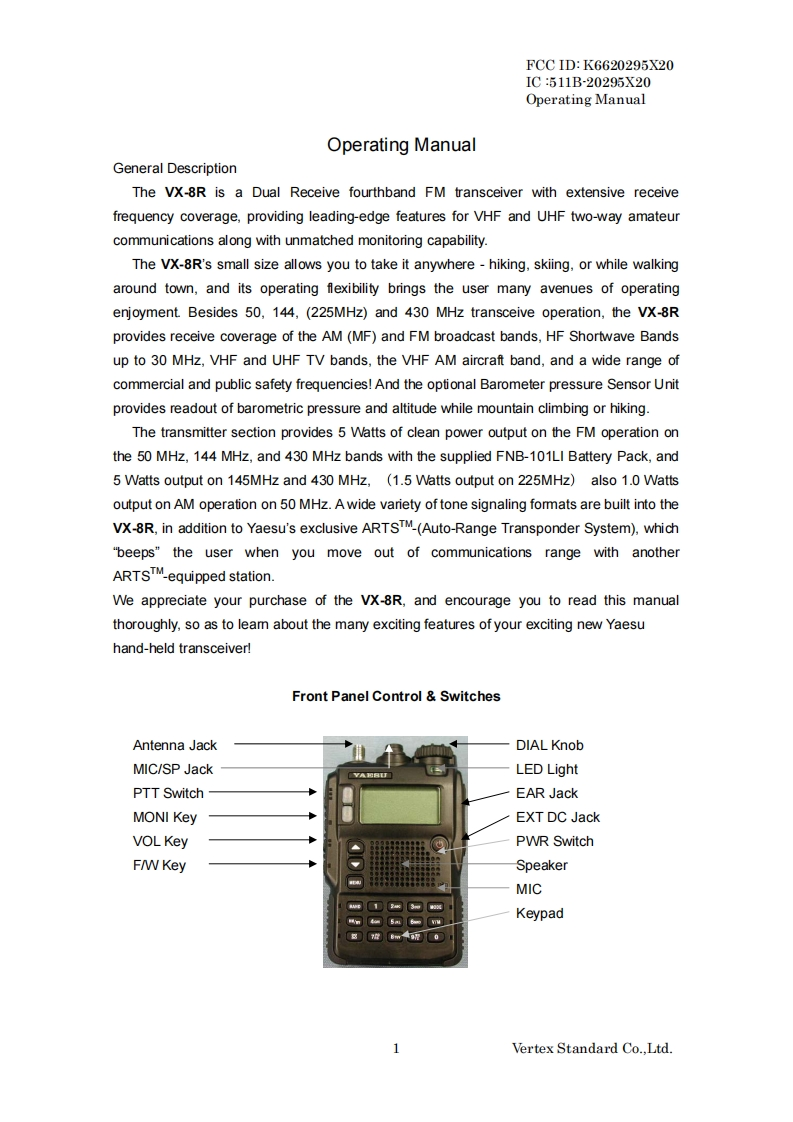

FCC ID:K6620295X20IC:511B-20295X20Operating ManualOperating ManualGeneral DescriptionThe VX-8R is a Dual Receive fourthband FM transceiver with extensive receivefrequency coverage,providing leading-edge features for VHF and UHF two-way amateurcommunications along with unmatched monitoring capability.The VX-8R's small size allows you to take it anywhere-hiking,skiing,or while walkingaround town,and its operating flexibility brings the user many avenues of operatingenjoyment.Besides 50,144,(225MHz)and 430 MHz transceive operation,the VX-8Rprovides receive coverage of the AM(MF)and FM broadcast bands,HF Shortwave Bandsup to 30 MHz,VHF and UHF TV bands,the VHF AM aircraft band,and a wide range ofcommercial and public safety frequencies!And the optional Barometer pressure Sensor Unitprovides readout of barometric pressure and altitude while mountain climbing or hiking.The transmitter section provides 5 Watts of clean power output on the FM operation onthe 50 MHz,144 MHz,and 430 MHz bands with the supplied FNB-101LI Battery Pack,and5 Watts output on 145MHz and 430 MHz,(1.5 Watts output on 225MHz)also 1.0 Wattsoutput on AM operation on 50 MHz.A wide variety of tone signaling formats are built into theVX-8R,in addition to Yaesu's exclusive ARTSTM-(Auto-Range Transponder System),which"beeps"the user when you move out of communications range with anotherARTSTMequipped station.We appreciate your purchase of the VX-8R,and encourage you to read this manualthoroughly,so as to leam about the many exciting features of your exciting new Yaesuhand-held transceiver!Front Panel Control SwitchesAntenna JackDIAL KnobMIC/SP JackLED LightPTT SwitchEAR JackMONI KeyEXT DC JackVOL KeyPWR SwitchF/W KeySpeakerMICKeypadVertex Standard Co..Ltd.
