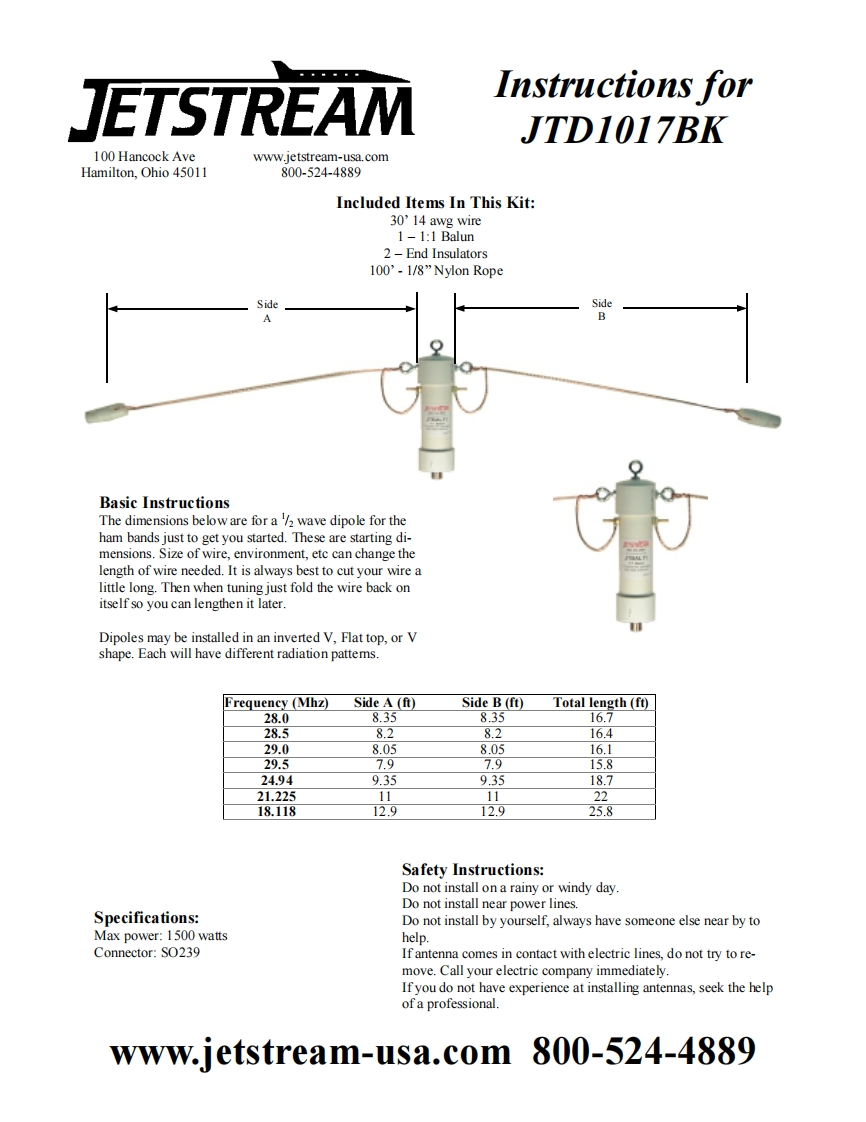

JETSTREAMInstructions forJTD1017BK100 Hancock Avewww.jetstream-usa.comHamilton,Ohio 45011800-524-4889Included Items In This Kit:30'14 awg wire1-1:1 Balun2-End Insulators10o'-1/8”Nylon RopeSideSideBasic InstructionsThe dimensions below are for a wave dipole for theham bands just to get you started.These are starting di-mensions.Size of wire,environment,etc can change thelength of wire needed.It is always best to cut your wire alittle long.Then when tuning just fold the wire back onitself so you can lengthen it laterDipoles may be installed in an inverted V,Flat top,or Vshape.Each will have different radiation pattems.Frequency (Mhz)Side A (ft)Side B(ft)Total length (ft)28.08.358.3516.728.58.28.216.429.08.058.0516.129.37.97.915.824.949.359.3518.721.22511112218.11812.912.925.8Safety Instructions:Do not install on a rainy or windy day.Do not install near power lines.Specifications:Do not install by yourself,always have someone else near by toMax power:1500 wattshelp.Connector:SO239If antenna comes in contact with electric lines,do not try to re-move.Call your electric company immediately.If you do not have experience at installing antennas,seek the helpof a professional.www.jetstream-usa.com 800-524-4889
