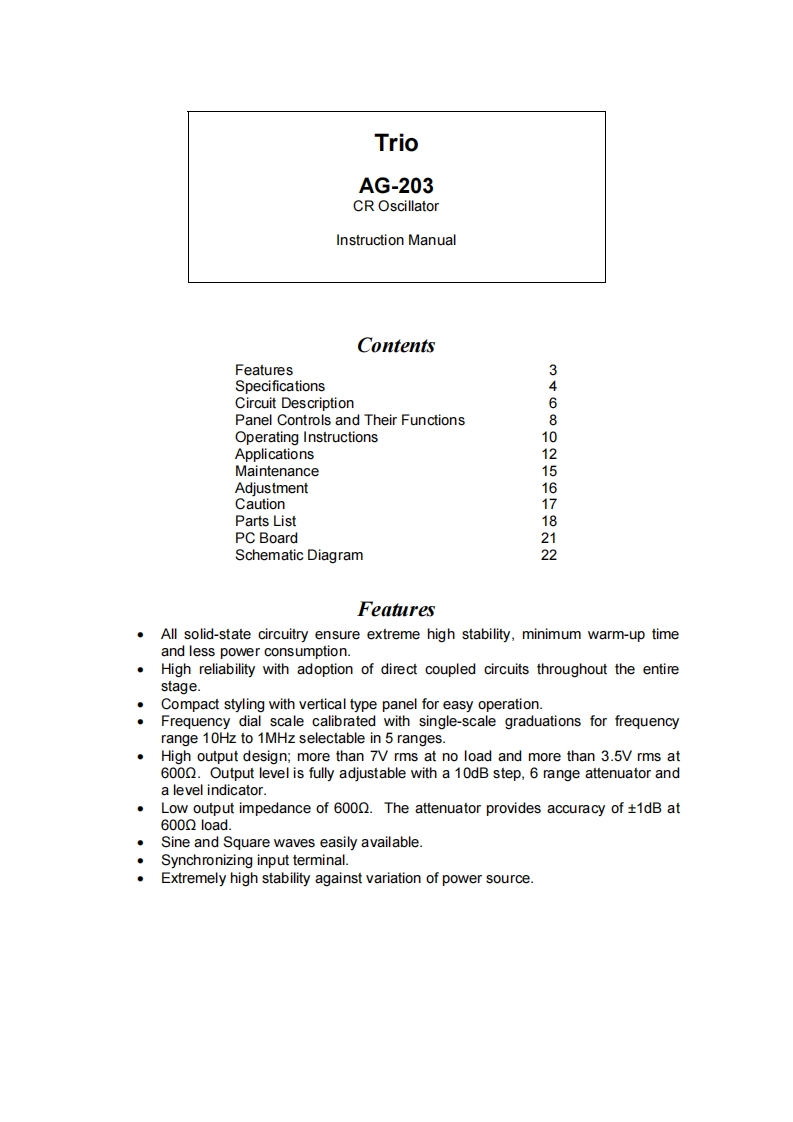

TrioAG-203CR OscillatorInstruction ManualContentsFeaturesSpecificationsCircuit Description346Panel Controls and Their FunctionsOperating InstructionsApplications2MaintenanceAdjustment16CautionParts ListPC Board71812Schematic DiagramFeaturesAll solid-state circuitry ensure extreme high stability,minimum warm-up timeand less power consumption.High reliability with adoption of direct coupled circuits throughout the entirestage.Compact styling with vertical type panel for easy operation.Frequency dial scale calibrated with single-scale graduations for frequencyrange 10Hz to 1MHz selectable in 5 ranges.High output design;more than 7V rms at no load and more than 3.5V rms at6000.Output level is fully adjustable with a 10dB step,6 range attenuator anda level indicator.Low output impedance of 6000.The attenuator provides accuracy of +1dB at6000 load.Sine and Square waves easily available.Synchronizing input terminal.Extremely high stability against variation of power source.
