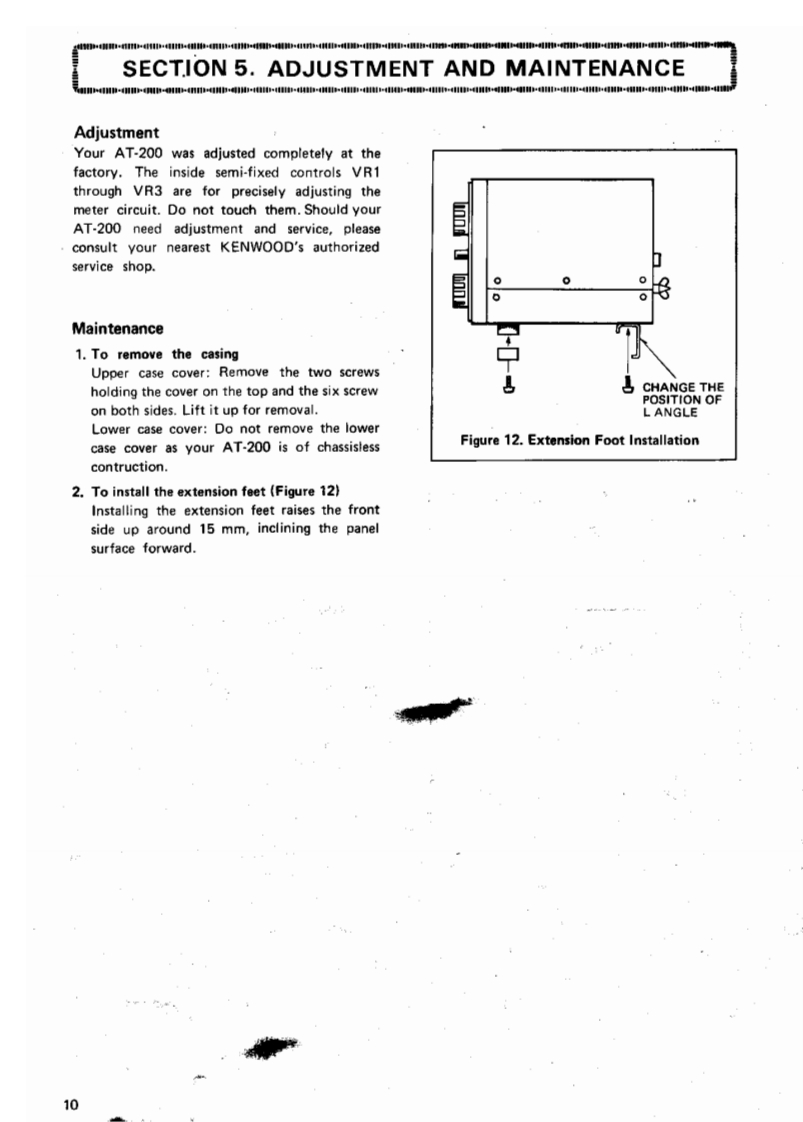

SECTION 5.ADJUSTMENT AND MAINTENANCE11141111-41111-418110-401102-411112-411019001118-00111-41810-0141-410110-41101*4011*-41141-00-411010-01110-4111094111-4111-43111-00110-411000-431118-41110-431113-401118-403-41AdjustmentYour AT-200 was adjusted completely at thefactory.The inside semi-fixed controls VR1through VR3 are for precisely adjusting themeter circuit.Do not touch them.Should yourAT-200 need adjustment and service,pleaseconsult your nearest KENWOOD's authorizedservice shop.0Maintenance1.To remove the casingUpper case cover:Remove the two screwsholding the cover on the top and the six screwCHANGE THEPOSITION OFon both sides.Lift it up for removal.L ANGLELower case cover:Do not remove the lowercase cover as your AT-200 is of chassislessFigure 12.Extension Foot Installationcontruction.2.To install the extension feet(Figure 12)Installing the extension feet raises the frontside up around 15 mm,inclining the panelsurface forward.10
