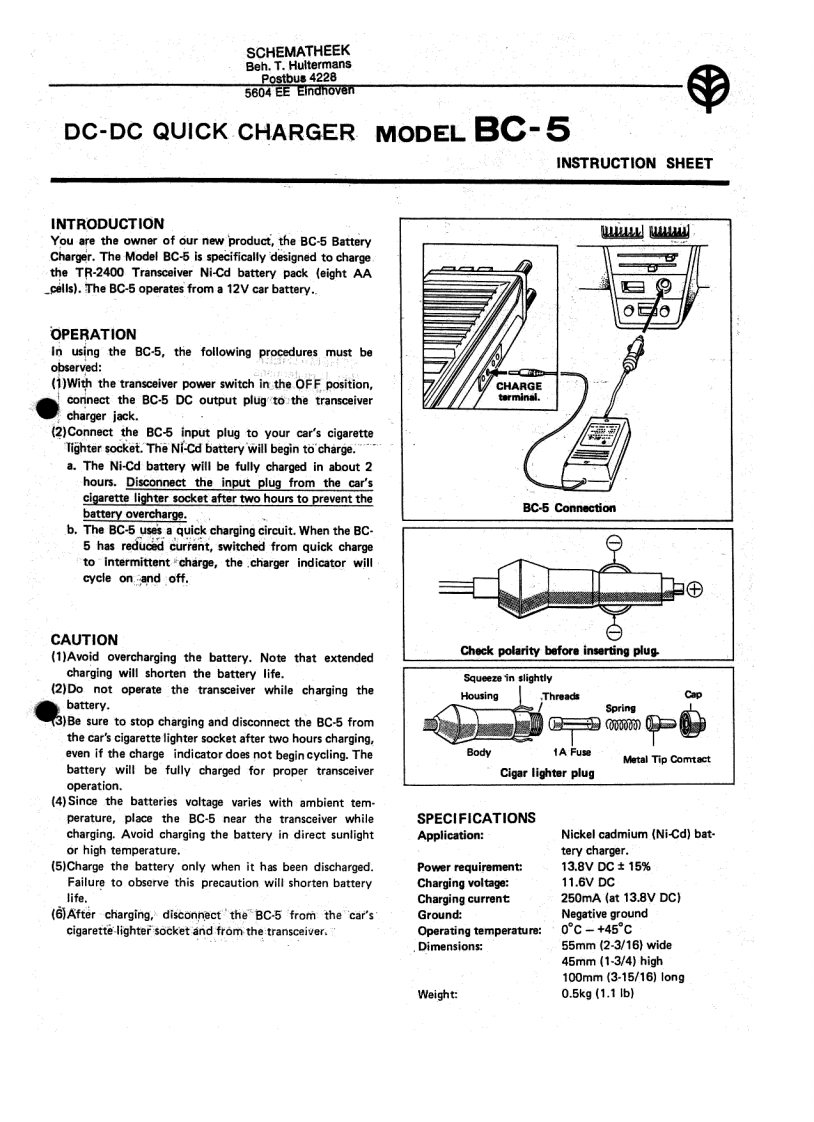

SCHEMATHEEKBeh.T.HultermansPostbus 42285604 EE EindhovenDC-DC QUICK CHARGERMODEL BC-5INSTRUCTION SHEETINTRODUCTIONYou are the owner of our new product,the BC-5 BatteryL四Charger.The Model BC-5 is specifically designed to chargethe TR-2400 Transceiver Ni-Cd battery pack (eight AA.cells).The BC-5 operates from a 12V car battery..OPERATIONIn using the BC-5,the following procedures must beobserved:(1)With the transceiver power switch in the OFF position,CHARGEconinect the BC-5 DC output plug to the transceivertarminal.charger jack.(2)Connect the BC-5 input plug to your car's cigaretteTighter socket.The Ni-Cd battery will begin to'charge.a.The Ni-Cd battery will be fully charged in about 2hours.Disconnect the input plug from the car'scigarette lighter socket after two hours to prevent thebattery overcharge.BC-5 Connectionb.The BC-5 uses a quick charging circuit.When the BC.5 has reduced current,switched from quick chargeto intermittent charge,the.charger indicator willcycle on.and off.CAUTION(1)Avoid overcharging the battery.Note that extendedCheck polarity before inserting plugcharging will shorten the battery life.Squeeze in slightly(2)Do not operate the transceiver while charging theHousingThreac由Capbattery.Spring3)Be sure to stop charging and disconnect the BC-5 fromthe car's cigarette lighter socket after two hours charging,even if the charge indicator does not begin cycling.TheBody1A FuseMetal Tip Comtactbattery will be fully charged for proper transceiverCigar lighter plugoperation.(4)Since the batteries voltage varies with ambient tem-perature,place the BC-5 near the transceiver whileSPECIFICATIONScharging.Avoid charging the battery in direct sunlightApplication:Nickel cadmium (Ni-Cd)bat-or high temperature.tery charger.(5)Charge the battery only when it has been discharged.Power requirement:13.8VDC±15%Failure to observe this precaution will shorten batteryCharging voltage:11.6V DClife.Charging current250mA(at 13.8V DC)(6)After charging,disconnectthe BC-5 from the car'sGround:Negative groundcigarette-lighter socket and from the transceiver.Operating temperature:0°c-+45°CDimensions:55mm (2-3/16)wide45mm(1-3/4)high100mm(3-15/16)longWeight:0.5kg(1.1b)
