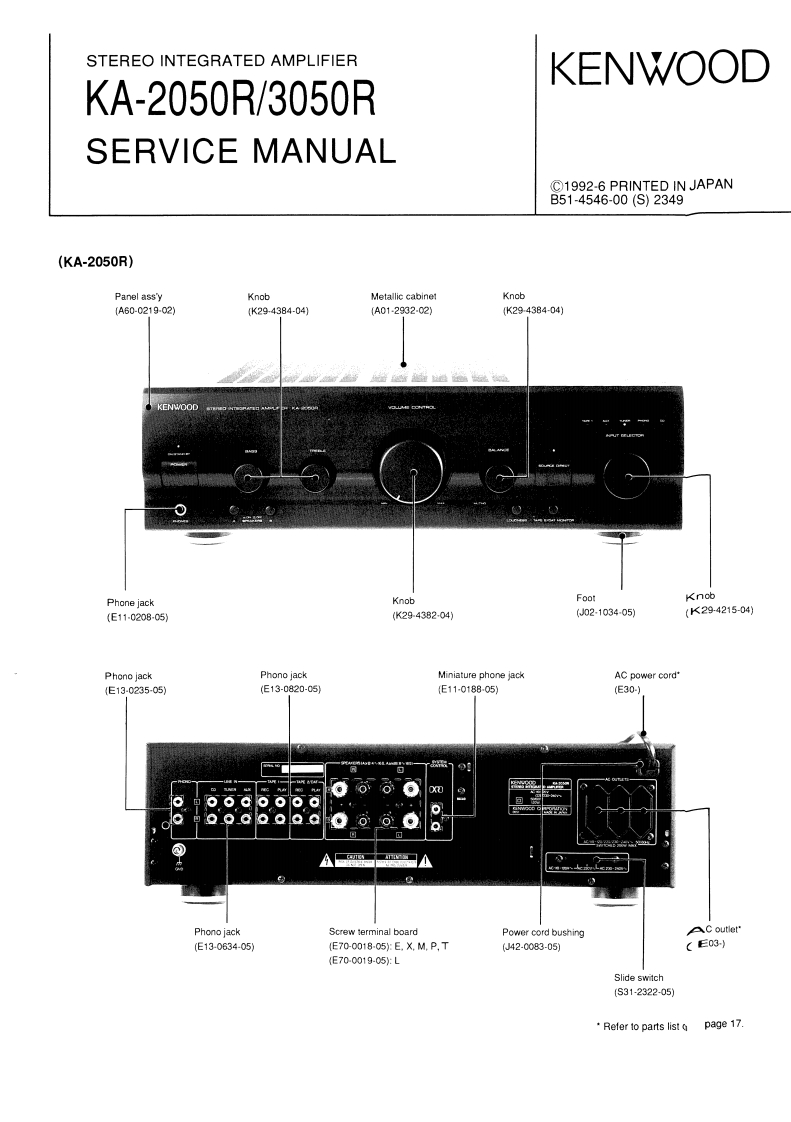

STEREO INTEGRATED AMPLIFIERKENWOODKA-2050R/3050RSERVICE MANUALC1992-6 PRINTED IN JAPANB51-4546-00(S)2349(KA-2050R)Panel ass'yKnobMetallic cabinetKnob(A60-0219-02)K29-4384-04(A01-2932-02)(K2943B4-04)KENWOODPhone jackKnobFootKnob(E11-0208-05)(K294382-04)(02-1034-05)(K29-4215-04)Phono jackPhono jackMiniature phone jackAC power cord"(E13-0235-05)(E13-0820-05)(E11-0188-05)(E30-)。@。。Q。●QQQAAPhono jackScrew terminal boardPower cord bushingC outlet(E13-0634-05)(E70-0018-05:E,X.M.P,T(42-0083-05)C E03-)(E70-0019-05:LSlide switch(S31-2322-05)·Refer to parts list apage 17.
