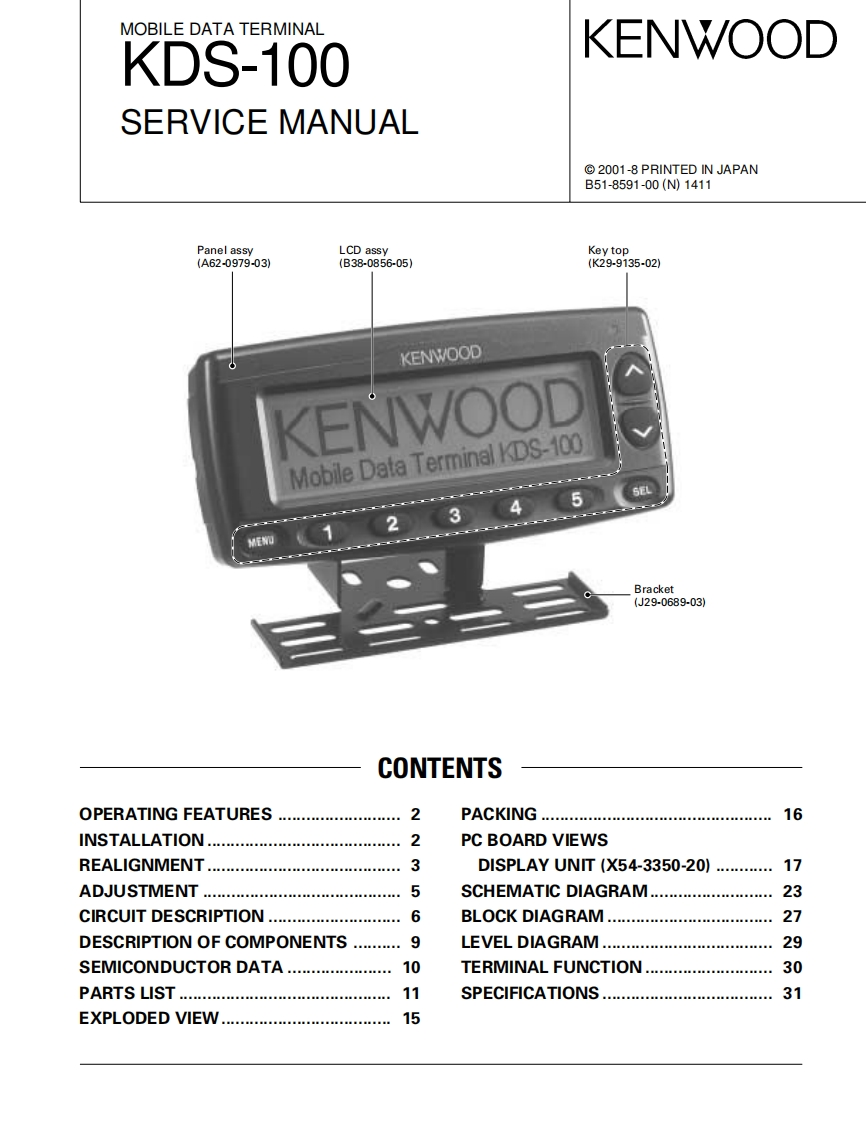

MOBILE DATA TERMINALKDS-100KENWOODSERVICE MANUAL2001-8 PRINTED IN JAPANB51-8591-00(N)1411Panel assyLCD assyKey top(A62-0979-03)(B38-0856-05)(K29-9135-02)KENWOODKENWOODMobile Data Terminal KDS-100SEL53Bracket(J29-0689-03)CONTENTSOPERATING FEATURES2PACKING16INSTALLATION...2PC BOARD VIEWSREALIGNMENT..…3DISPLAY UNIT (X54-3350-20)...........17ADJUSTMENT ..............*5SCHEMATIC DIAGRAM..23CIRCUIT DESCRIPTION.6BLOCK DIAGRAM27DESCRIPTION OF COMPONENTS..........9LEVEL DIAGRAM.29SEMICONDUCTOR DATA................10TERMINAL FUNCTION...30PARTS LIST..............11SPECIFICATIONS..31EXPLODED VIEW...........15
