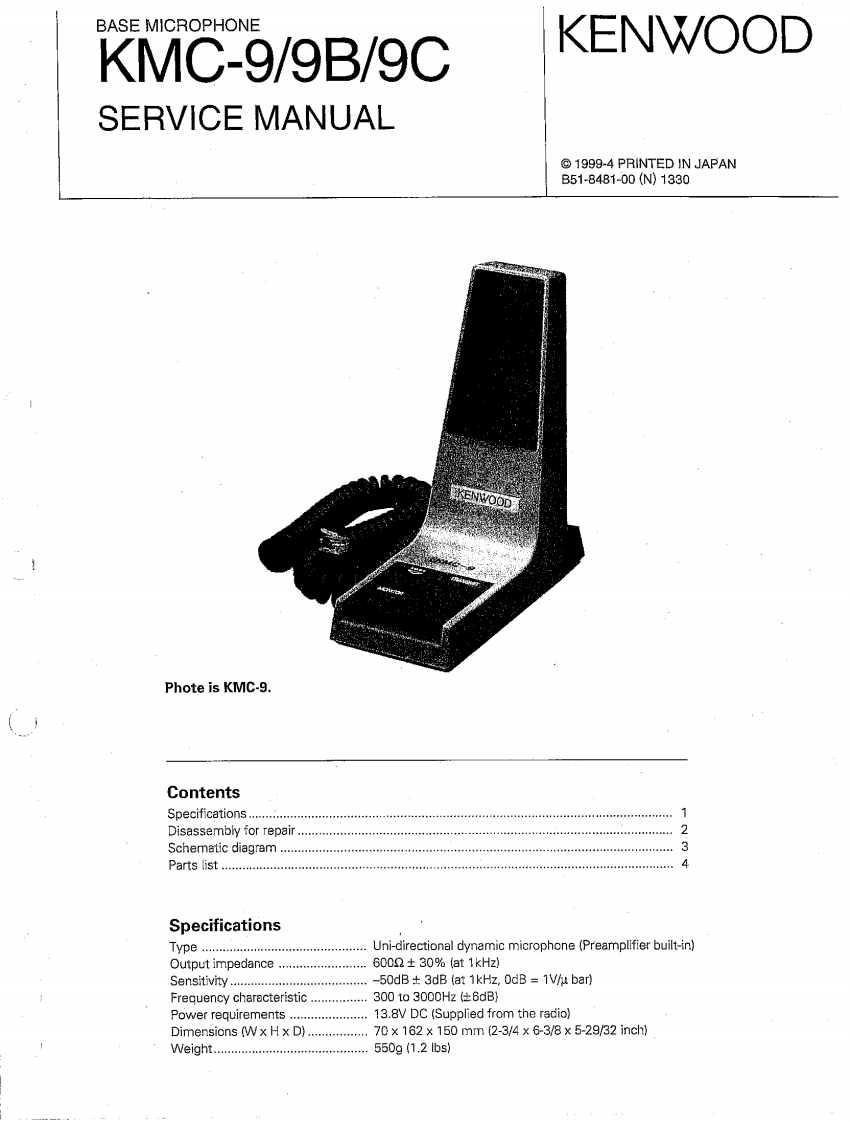

BASE MICROPHONEKMC-9/9B/9CKENWOODSERVICE MANUAL1999-4 PRINTED IN JAPANB51-8481-00(N)1330年/0op%Phote is KMC-9.ContentsSpecifications....1Disassembly for repair .....Schematic diagram23Parts list.4SpecificationsType.Uni-directional dynamic microphone (Preamplifier built-in)0 utput impedance…6002±30%(at1kH2)SenSitivity...-50dB+3dB (at 1kHz,OdB 1V/u bar)Frequency characteristic ...............300 to 3000Hz (6dB)Power requirements ..13.8V DC (Supplied from the radio)Dimensions (Wx H×D)..70×162x150mm2-3/4×6-3/8x5-29/32inchWeight.…550g(1.2lbsl
