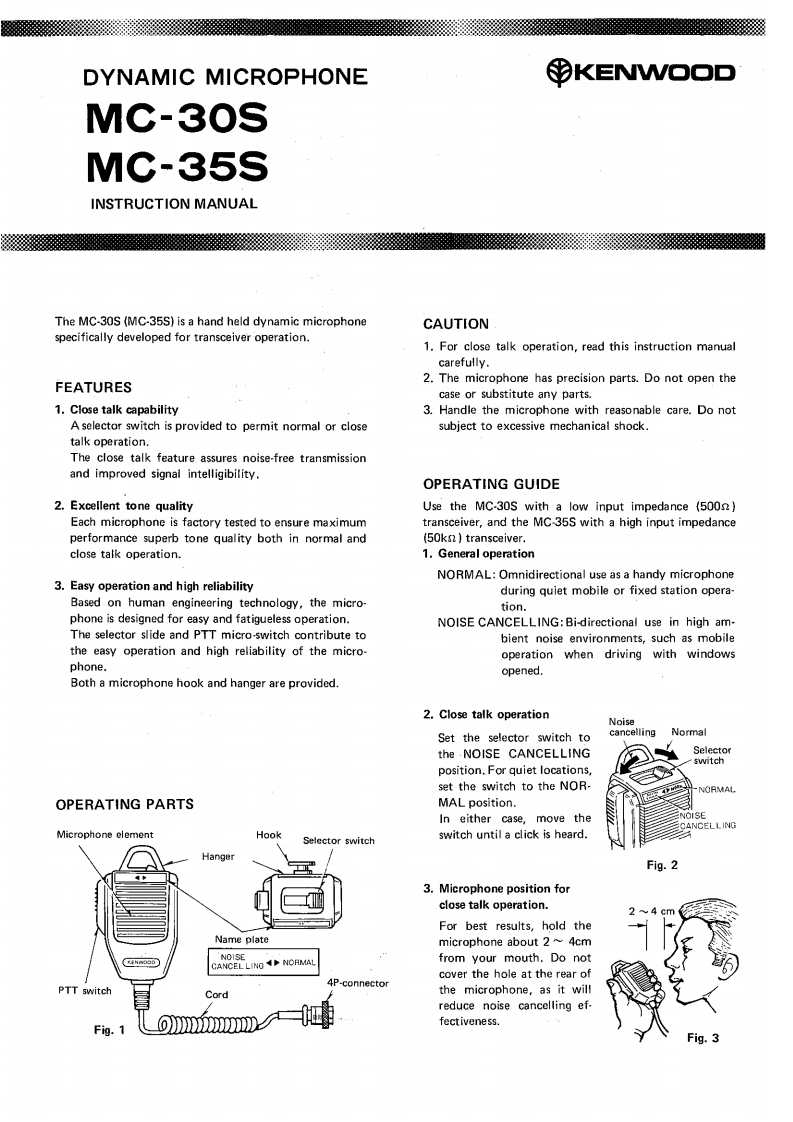

DYNAMIC MICROPHONEKENWOODMC-3OSMC-35SINSTRUCTION MANUALThe MC-30S (MC-35S)is a hand held dynamic microphoneCAUTIONspecifically developed for transceiver operation.1.For close talk operation,read this instruction manualcarefully.FEATURES2.The microphone has precision parts.Do not open thecase or substitute any parts.1.Close talk capability3.Handle the microphone with reasonable care.Do notA selector switch is provided to permit normal or closesubject to excessive mechanical shock.talk operation.The close talk feature assures noise-free transmissionand improved signal intelligibility.OPERATING GUIDE2.Excellent tone qualityUse the MC-30S with a low input impedance (5002)Each microphone is factory tested to ensure maximumtransceiver,and the MC-35S with a high input impedanceperformance superb tone quality both in normal and(50ks)transceiver.close talk operation1.General operationNORMAL:Omnidirectional use as a handy microphone3.Easy operation and high reliabilityduring quiet mobile or fixed station opera-Based on human engineering technology,the micro-tion.phone is designed for easy and fatigueless operation.NOISE CANCELLING:Bi-directional use in high am-The selector slide and PTT micro-switch contribute tobient noise environments,such as mobilethe easy operation and high reliability of the micro-operation when driving with windowsphone.opened.Both a microphone hook and hanger are provided.2.Close talk operationNoiseSet the selector switch tocancellingNormalthe NOISE CANCELLINGSelectorswitchposition.For quiet locations,set the switch to the NOR-NORMALOPERATING PARTSMAL position.In either case,move theNCELLINGMicrophone elementHookSelector switchswitch until a click is heard.HangerFig.23.Microphone position forclose talk operation.For best results,hold theName platemicrophone about 2~4cmNOISECANCELLING NORMALfrom your mouth.Do notcover the hole at the rear ofPTT switch4P-connectorCordthe microphone,as it willreduce noise cancelling ef.fectiveness.Fig.1Fig.3
