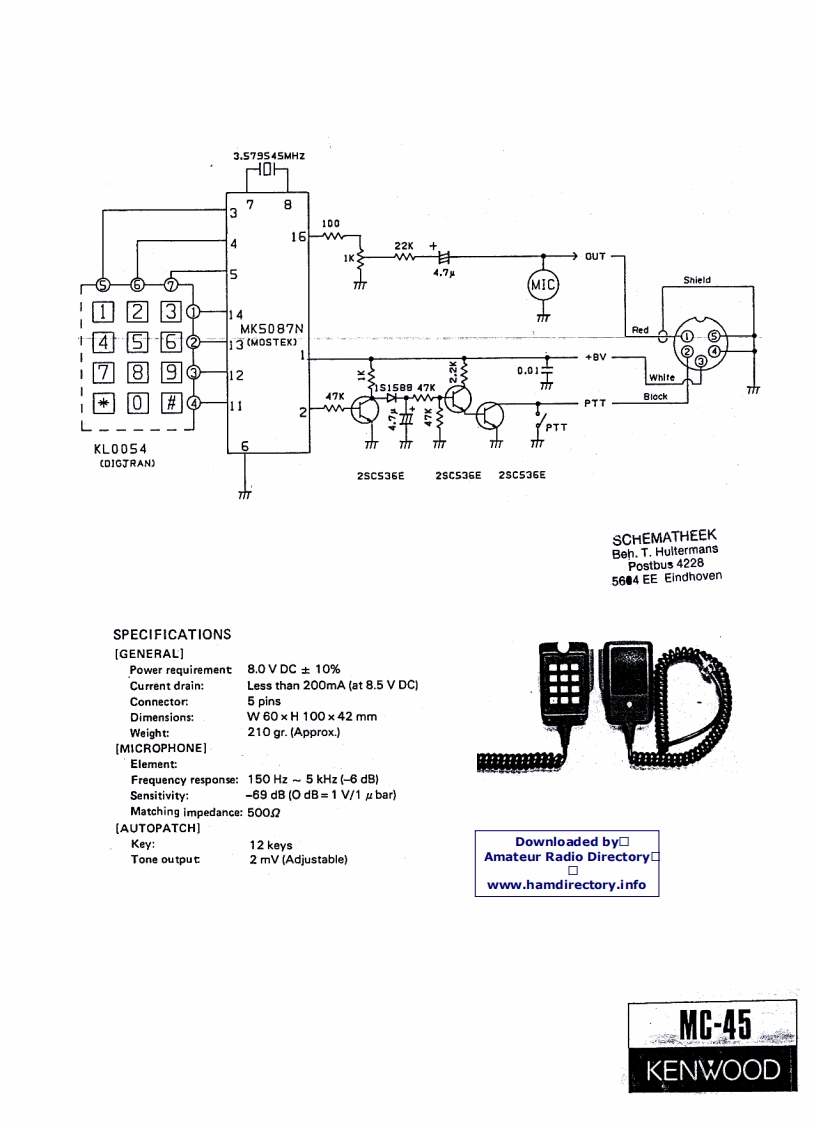

Kenwood_MC-45_电器原理图

3.S79545MHz81001622K1K54.74⑤⑦MICShield1①②304MK5087NRed④⑤I3(MOSTEX)0⑤+日W④⑦⑧2001white1s158847K1*可47KPTTKL0054(DIGJRAN)2SCS36E2SC536E2SC536ESCHEMATHEEKBeh.T.HultermansPostbus 42285604 EE EindhovenSPECIFICATIONS[GENERAL】Power requirement 8.0V DC+10%Current drain:Less than 200mA (at 8.5 V DC)Connector:5 pinsDimensionsW60×H100×42mmWeight:210 gr.(Approx.)[MICROPHONE]Element:Frequency response:150 Hz ~5 kHz(-6 dB)Sensitivity:-69 dB (O dB=1 V/1 ubar)Matching impedance:5002(AUTOPATCH]Key:12 keysDownloaded byt▣Tone output2 mV(Adjustable)Amateur Radio Directory▣www.hamdirectory.infoMC-45KENWOOD
