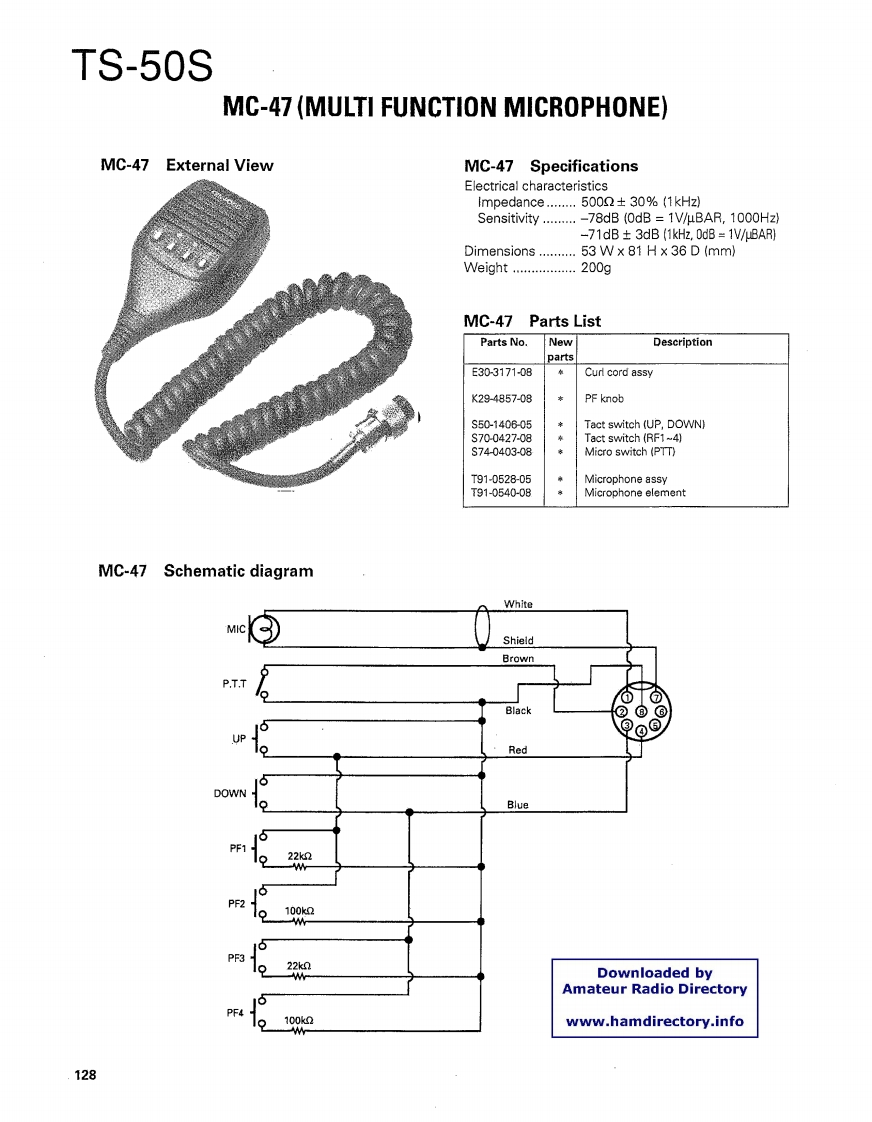

TS-50SMC-47(MULTI FUNCTION MICROPHONE)MC-47 External ViewMC-47 SpecificationsElectrical characteristicsImpedance........500+30%(1kHz)Sensitivity ..........-78dB (0dB 1V/uBAR,1000Hz)-71dB 3dB (1kHz,OdB 1V/uBAR)Dimensions.........53 Wx 81 Hx36 D(mm)Weight...200gMC-47Parts ListParts NoNewDescriptionpartsE30-3171-08Curl cord assyK29-4857-08PF knobS50-1406-05Tact switch (UP,DOWN)S700427-08Tact switch (RF1~4)S74-0403-08Micro switch (PTT)T91-0528-05Microphone assyT91-0540-08Microphone elementMC-47 Schematic diagramWhiteMICShieldBrownP.T.T⑥⑦BlackUPQoOpRedDOWNBluePF122k2wPF2100k0PF3o22k0Downloaded byAmateur Radio DirectoryPF4100k2www.hamdirectory.info128
