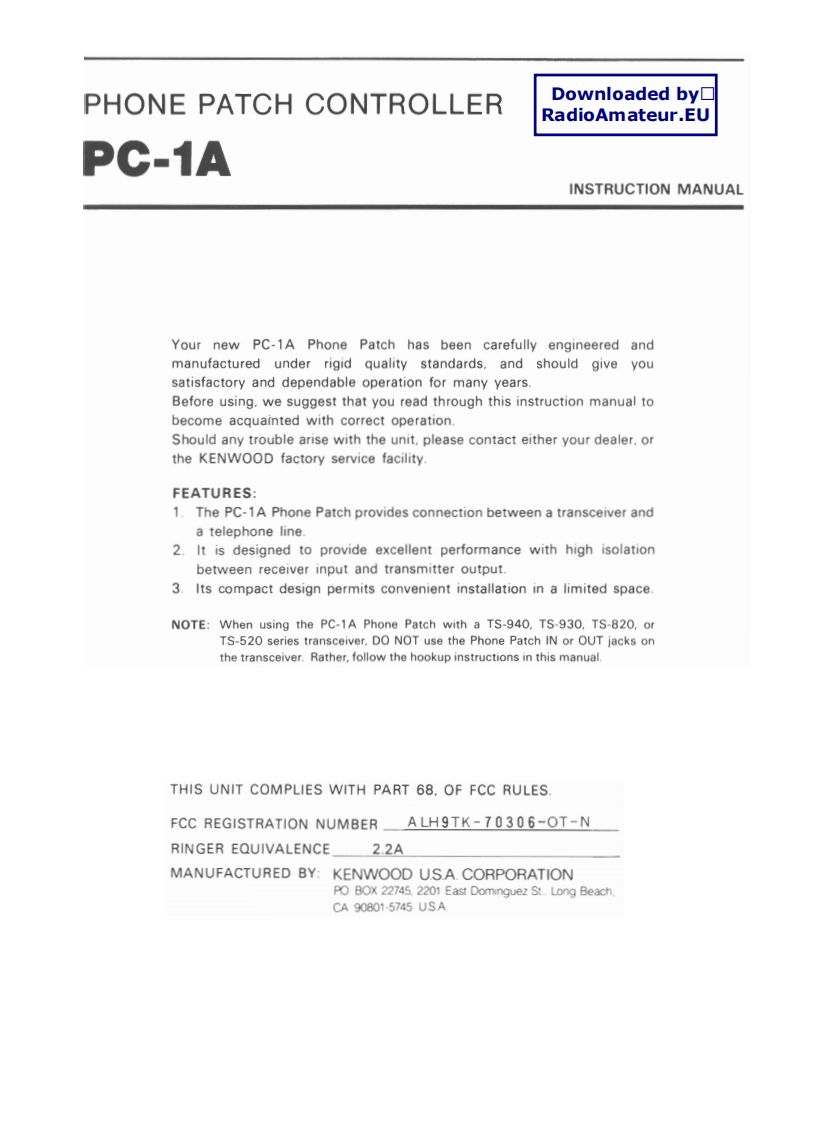

PHONE PATCH CONTROLLERDownloaded byRadioAmateur.EUPC-1AINSTRUCTION MANUALYour new PC-1A Phone Patch has been carefully engineered andmanufactured under rigid quality standards.and should give yousatisfactory and dependable operation for many years.Before using.we suggest that you read through this instruction manual tobecome acquainted with correct operation.Should any trouble arise with the unit,please contact either your dealer.orthe KENWOOD factory service facility.FEATURES:1.The PC-1A Phone Patch provides connection between a transceiver anda telephone line.2.It is designed to provide excellent performance with high isolationbetween receiver input and transmitter output.3.Its compact design permits convenient installation in a limited space.NOTE:When using the PC-1A Phone Patch with a TS-940.TS-930.TS-820,orTS-520 series transceiver.DO NOT use the Phone Patch IN or OUT jacks onthe transceiver.Rather,follow the hookup instructions in this manual.THIS UNIT COMPLIES WITH PART 68.OF FCC RULESFCC REGISTRATION NUMBER ALH9TK-70306-OT-NRINGER EQUIVALENCE 2.2AMANUFACTURED BY:KENWOOD US.A.CORPORATIONPO BOX 22745 2201 East Dominguez St Long Beach.CA90801-5745USA
