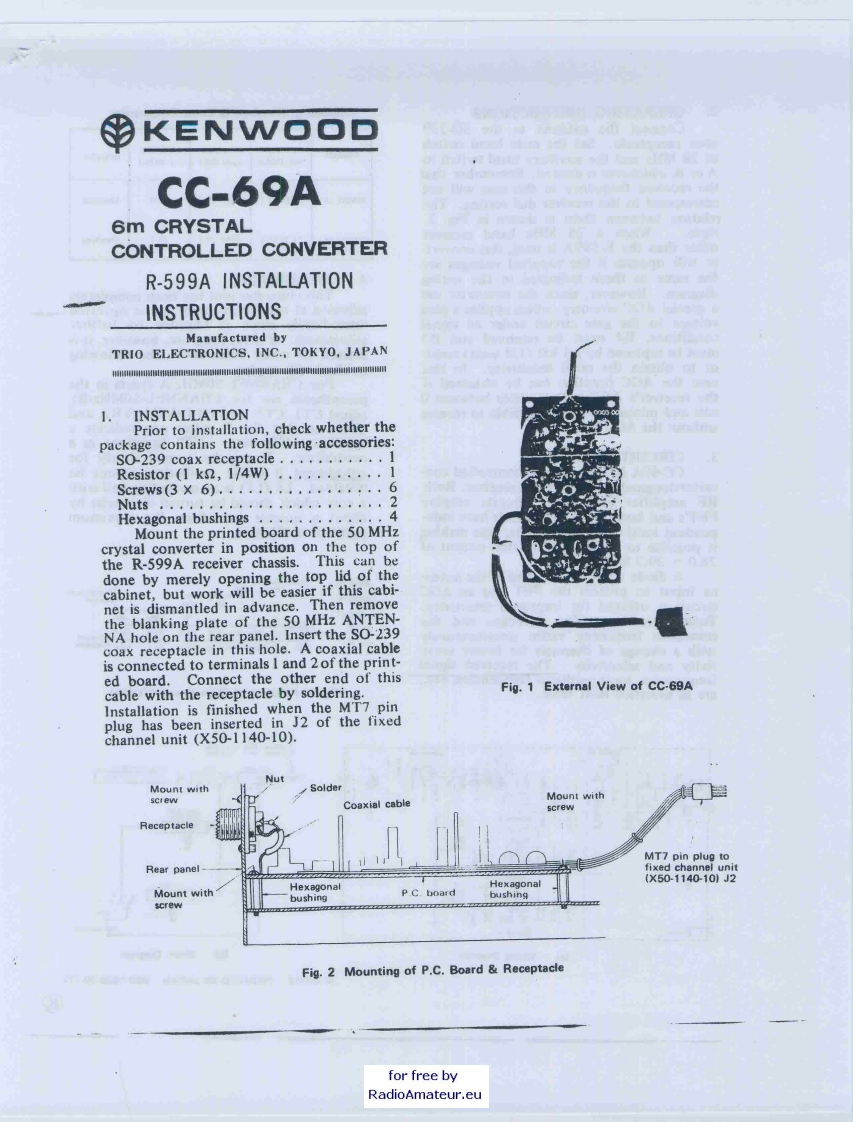

KENWOODCC-69A6m CRYSTALCONTROLLED CONVERTERR-599A INSTALLATIONINSTRUCTIONSManufactured byTRIO ELECTRONICS,INC.,TOKYO,JAPANH国E国图国a国国s用周3B1.INSTALLATIONPrior to installation,check whether thepackage contains the following accessories:SO-239 coax receptacle,,,,,,,,.··1Resistor (I k,1/4W)...........IScrews(3X6)....,...,.,,,··Nuts·3Hexagonal bushings.Mount the printed board of the 50 MHzcrystal converter in position on the top ofthe R-599A receiver chassis.This can bedone by merely opening the top lid of thecabinet,but work will be easier if this cabi-net is dismantled in advance.Then removethe blanking plate of the 50 MHz ANTEN-NA hole on the rear panel.Insert the SO-239coax receptacle in this hole.A coaxial cableis connected to terminals I and 2 of the print-ed board.Connect the other end of thiscable with the receptacle by soldering.Fig.1 External View of CC-69AInstallation is finished when the MT7 pinplug has been inserted in J2 of the fixedchannel unit (X50-1140-10).NutMount withSolderscrewMount withCoaxial cablescrewReceptacleMT7 pin plug toRear panelfixed channel unitHexagonal(X50-1140-101J2Mount withHexagonabushingP.C.boardbushingscrewFig.2 Mounting of P.C.Board Receptaclefor free byRadioAmateur.eu
