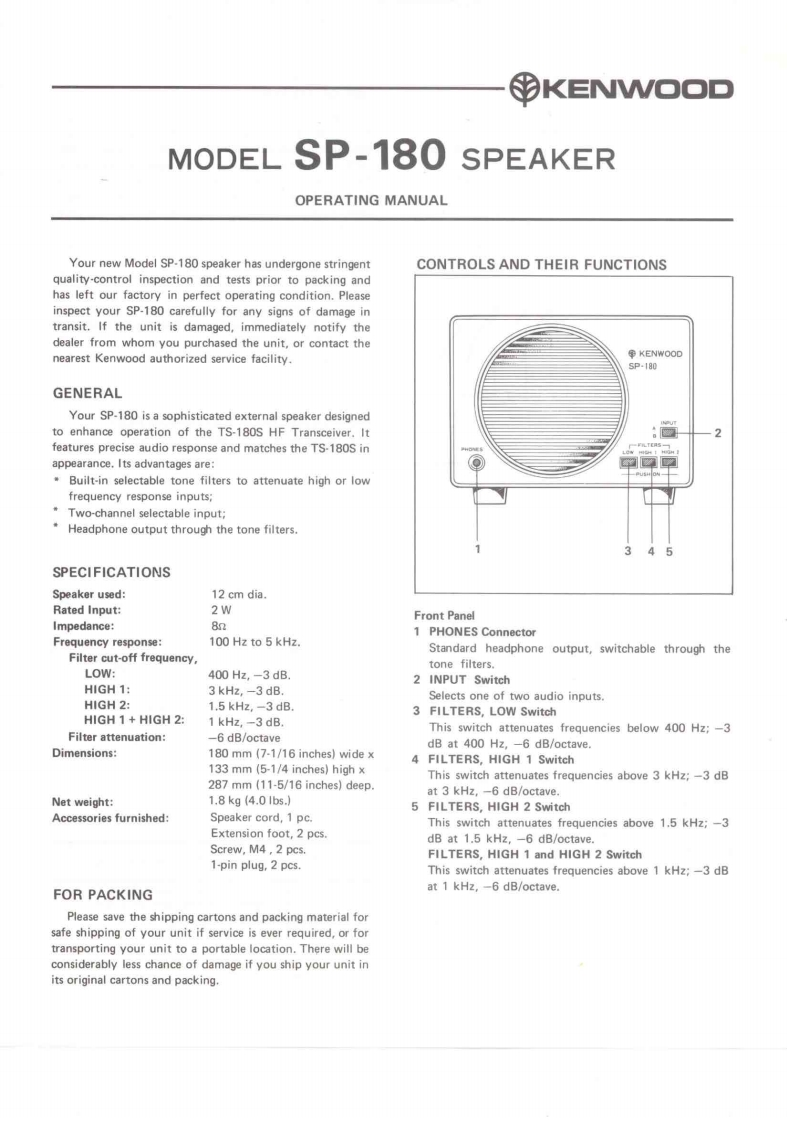

KENWOODMODEL SP-180 SPEAKEROPERATING MANUALYour new Model SP-180 speaker has undergone stringentCONTROLS AND THEIR FUNCTIONSquality-control inspection and tests prior to packing andhas left our factory in perfect operating condition.Pleaseinspect your SP-180 carefully for any signs of damage intransit.If the unit is damaged,immediately notify thedealer from whom you purchased the unit,or contact thenearest Kenwood authorized service facility.甲KENWOODSP-180GENERALYour SP-180 is a sophisticated external speaker designedto enhance operation of the TS-180S HF Transceiver.It.D.2features precise audio response and matches the TS-180S inappearance.Its advantages are:Built-in selectable tone filters to attenuate high or lowfrequency response inputs;Two-channel selectable input;Headphone output through the tone filters.SPECIFICATIONSSpeaker used:12 cm dia.Rated Input:2WFront PanelImpedance:8n1 PHONES ConnectorFrequency response:100 Hz to 5 kHz.Filter cut-off frequency,Standard headphone output,switchable through thetone filters.LOW:400Hz,-3dB2 INPUT SwitchHIGH 1:3 kHz,-3 dB.Selects one of two audio inputs.HIGH 2:1.5 kHz,-3 dB.3 FILTERS,LOW SwitchHIGH 1+HIGH 2:1 kHz,-3 dB.This switch attenuates frequencies below 400 Hz;-3Filter attenuation:-6 dB/octavedB at 400 Hz.-6 dB/octave.Dimensions:180 mm (7-1/16 inches)wide x4 FILTERS,HIGH 1 Switch133 mm (5-1/4 inches)high xThis switch attenuates frequencies above 3 kHz;-3 dB287 mm (11-5/16 inches)deep.at 3 kHz,-6 dB/octave.Net weight:1.8kg(4.01b5.5 FILTERS,HIGH 2 SwitchAccessories furnished:Speaker cord,1 pc.This switch attenuates frequencies above 1.5 kHz:-3Extension foot,2 pcs.dB at 1.5 kHz,-6 dB/octave.Screw,M4,2 pcs.FILTERS,HIGH 1 and HIGH 2 Switch1-pin plug,2 pcs.This switch attenuates frequencies above 1 kHz:-3 dBFOR PACKINGat 1 kHz,-6 dB/octave.Please save the shipping cartons and packing material forsafe shipping of your unit if service is ever required,or fortransporting your unit to a portable location.There will beconsiderably less chance of damage if you ship your unit inits original cartons and packing.
