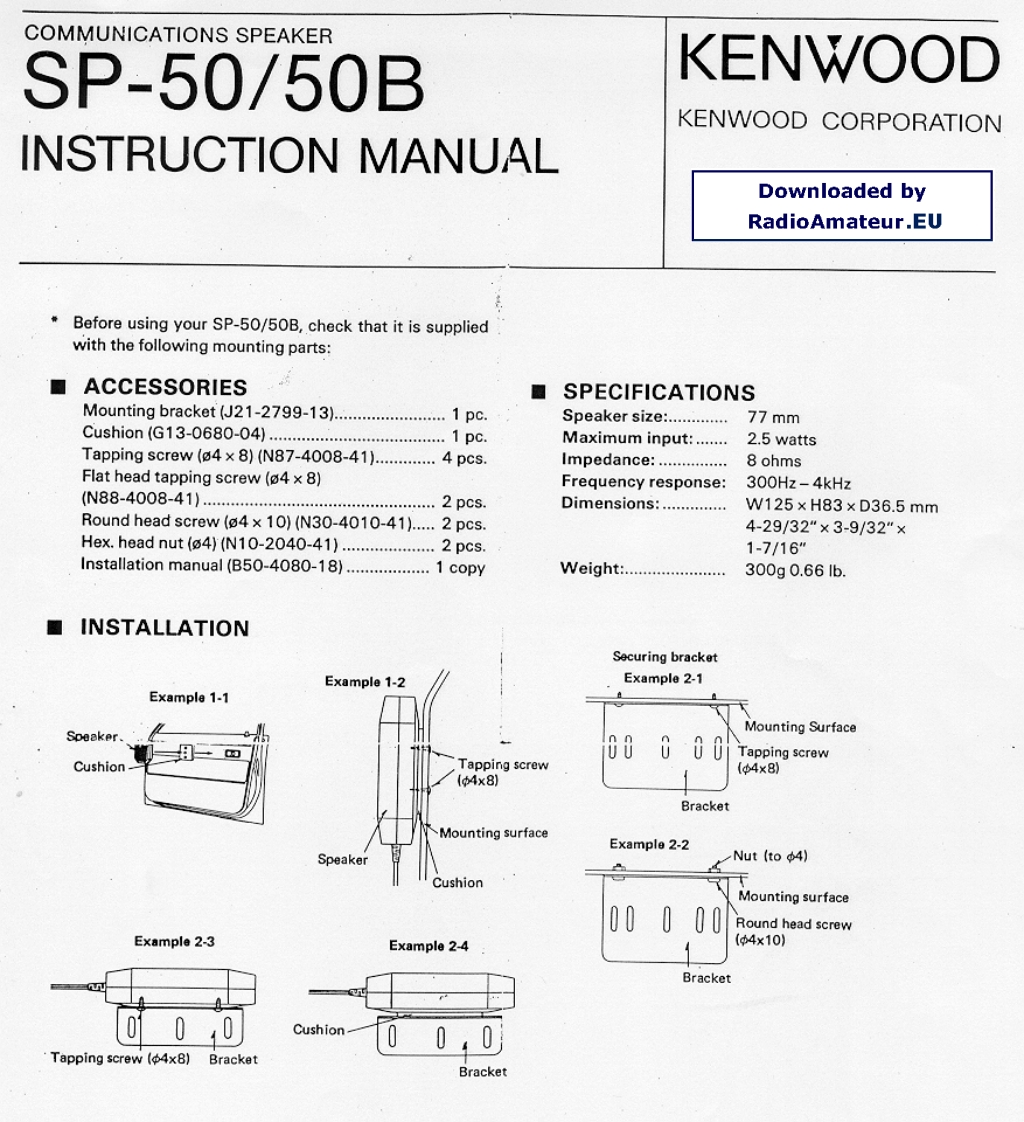

COMMUNICATIONS SPEAKERSP-50/50BKENWOODKENWOOD CORPORATIONINSTRUCTION MANUALDownloaded byRadioAmateur.EUBefore using your SP-50/50B,check that it is suppliedwith the following mounting parts:■ACCESSORIESSPECIFICATIONSMounting bracket (J21-2799-13)..............pc.Speaker size:.…77 mmCushion(G13-0680-04)1 pc.Maximum input:.......2.5 wattsTapping screw(4 x8)(N87-4008-41).............4 pcs.Impedance:............8ohmsFlat head tapping screw(84 x 8)Frequency response:300Hz-4kHz(N88-4008-41）.2pCS.Dimensions:…W125×H83×D36.5mmRound head screw (4 x 10)(N30-4010-41).....2 pcs.4-29/32“×3-9/32“×Hex.head nut(4)(N10-2040-41)…2 pcs.1-7/16Installation manual (B50-4080-18)..................1 copyWeight:.…300g0.66b.■INSTALLATIONSecuring bracketExample 1-2Example 2-1Example 1-1Mounting Surface00000Tapping screwCushionTapping screw(4×8(4x8)BracketMounting surfaceExample 2-2SpeakerNut (to 4)CushionMounting surface00000Round head screwExample 2-3Example 2-4(4×10)BracketCushion-0040Tapping screw (4x8)BracketBracket
