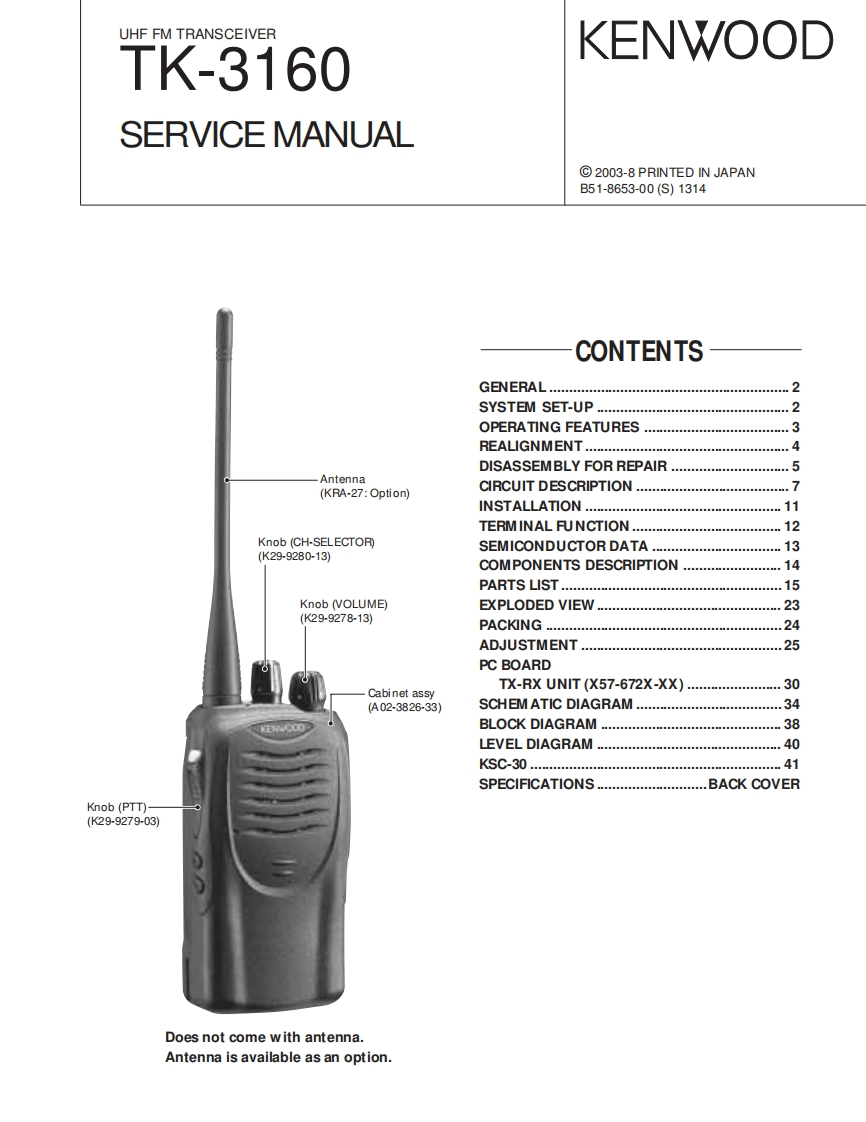

UHF FM TRANSCEIVERKENWOODTK-3160SERVICE MANUAL2003-8 PRINTED IN JAPANB51-8653-00(S)1314CONTENTSGENERAL......2SYSTEM SET-UP…2OPERATING FEATURES....3REALIGNMENT...4DISASSEMBLY FOR REPAIR..5Antenna(KRA-27:Option)CIRCUIT DESCRIPTION ........7INSTALLATION11TERM INAL FU NCTION..........12Knob(CH-SELECTOR)SEMICONDUCTOR DATA ....(K29-9280-13).13COMPONENTS DESCRIPTION.14PARTS LIST.15Knob (VOLUME)EXPLODED VIEW..23(K29-9278-13)PACKING.24ADJUSTMENT........25PC BOARDCabinet assyTX-RX UNIT (X57-672X-XX).................30(A02-3826-33)】SCHEMATIC DIAGRAM.34BLOCK DIAGRAM.38LEVEL DIAGRAM...40KSC-30...41SPECIFICATIONS.BACK COVERKnob (PTT)-(K29-9279-03)Does not come with antenna.Antenna is available as an option.
