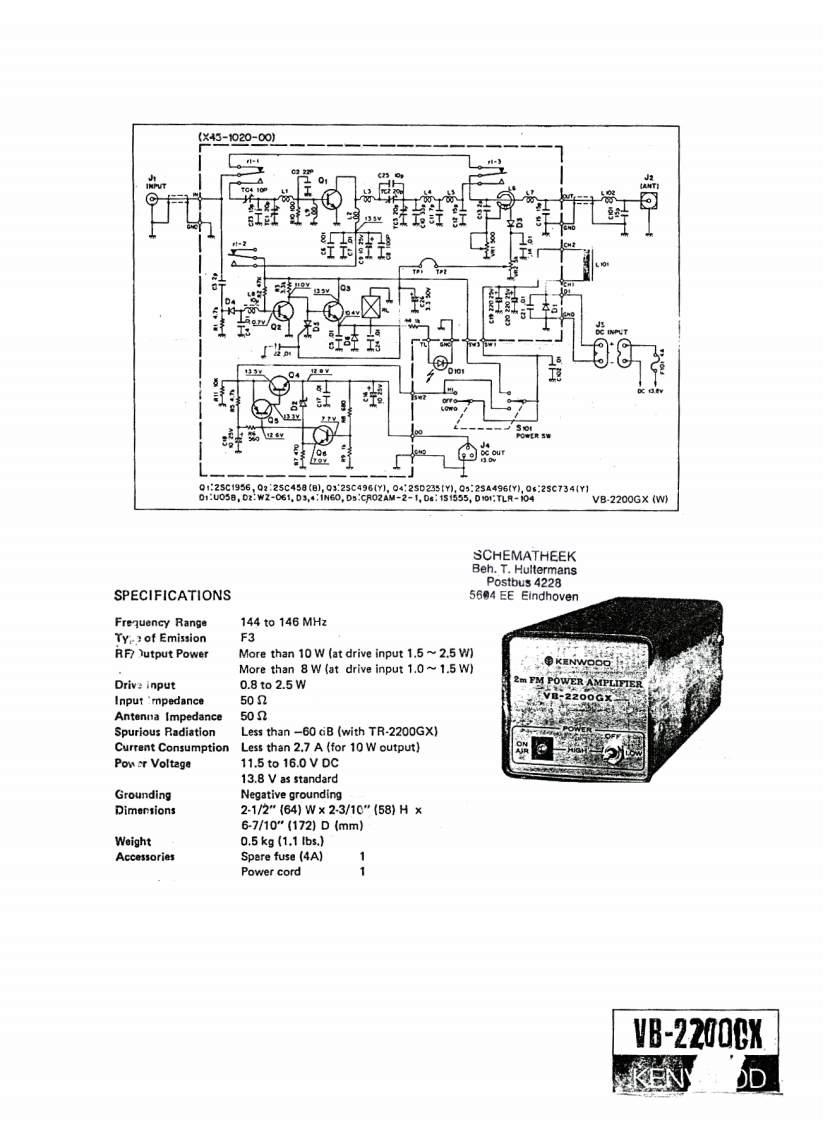

Kenwood_VB-2200GX_电器原理图

(X45-1020-00)8:25C1956,0225C459(e,0323C496Y0,0425D235(Y1:9:25A496(Y1,06:25c73401U058,D2:W2-061,D3,4:iN60,D5CR02AM-2-1,D:151555,Do1:TLR-VB-2200GX (W)SCHEMATHEEKBeh.T.HultermansPostbus 4228SPECIFICATIONS5604 EE EindhovenFrequency Range144t0146MHzTy2 of EmissionF3RF7utput PowerMore than 10 W (at drive input 1.5~2.5 W)More than 8 W (at drive input 1.0~1.5 W)Drive input0.8to2.5WInput 'mpedance50DAntenna Impedance50nSpurious RadiationLess than-60 cB (with TR-2200GX)Current ConsumptionLess than 2.7 A (for 10 W output)Pow er Voltage11.5to16.0VDc13.8 V as standardGroundingNegative groundingDimersions2-1/2"(64)W×2-3/10”(58)H×6-7/10"(172)D(mm)Weight0.5kg(1.1bs.】AccessoriesSpare fuse (4A)1Power cord1VB-2200CX蜀
