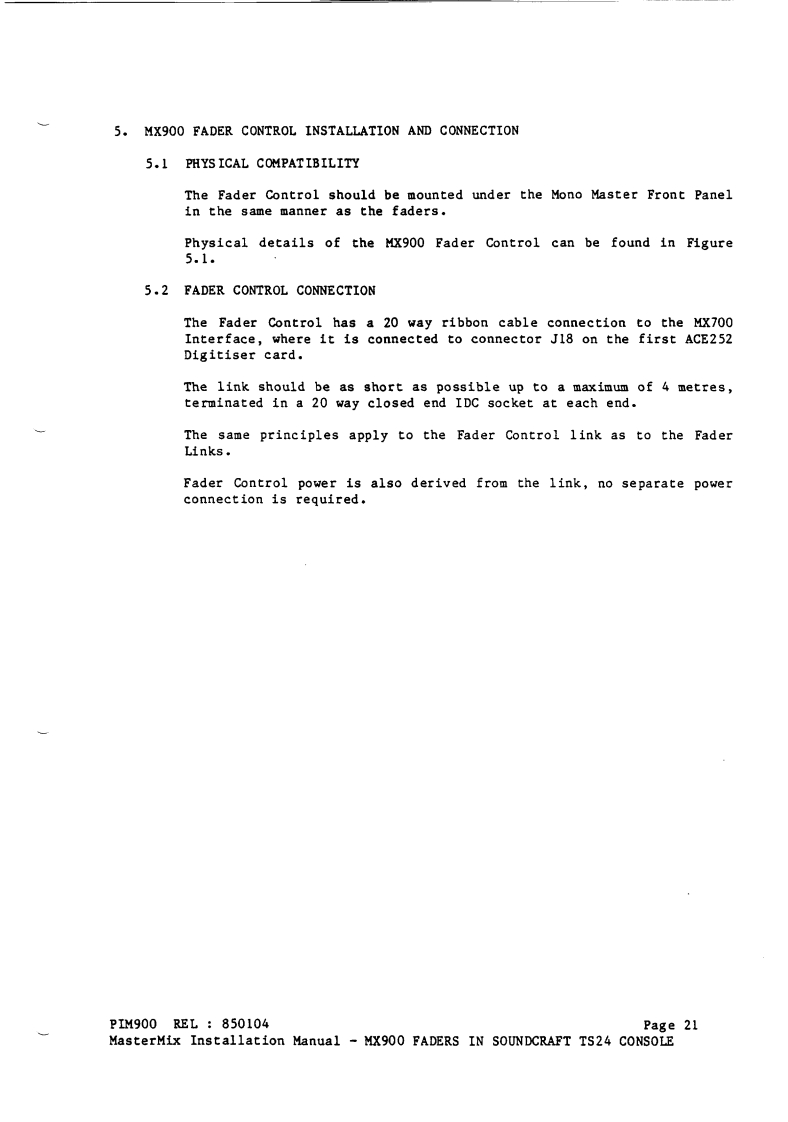

5.MX900 FADER CONTROL INSTALLATION AND CONNECTION5.1 PHYS ICAL COMPATIBILITYThe Fader Control should be mounted under the Mono Master Front Panelin the same manner as the faders.Physical details of the MX900 Fader Control can be found in Figure5.1.5.2 FADER CONTROL CONNECTIONThe Fader Control has a 20 way ribbon cable connection to the MX700Interface,where it is connected to connector J18 on the first ACE252Digitiser card.The link should be as short as possible up to a maximum of 4 metres,terminated in a 20 way closed end IDC socket at each end.The same principles apply to the Fader Control link as to the FaderLinks.Fader Control power is also derived from the link,no separate powerconnection is required.PIM900REL:850104Page 21MasterMix Installation Manual MX900 FADERS IN SOUNDCRAFT TS24 CONSOLE
