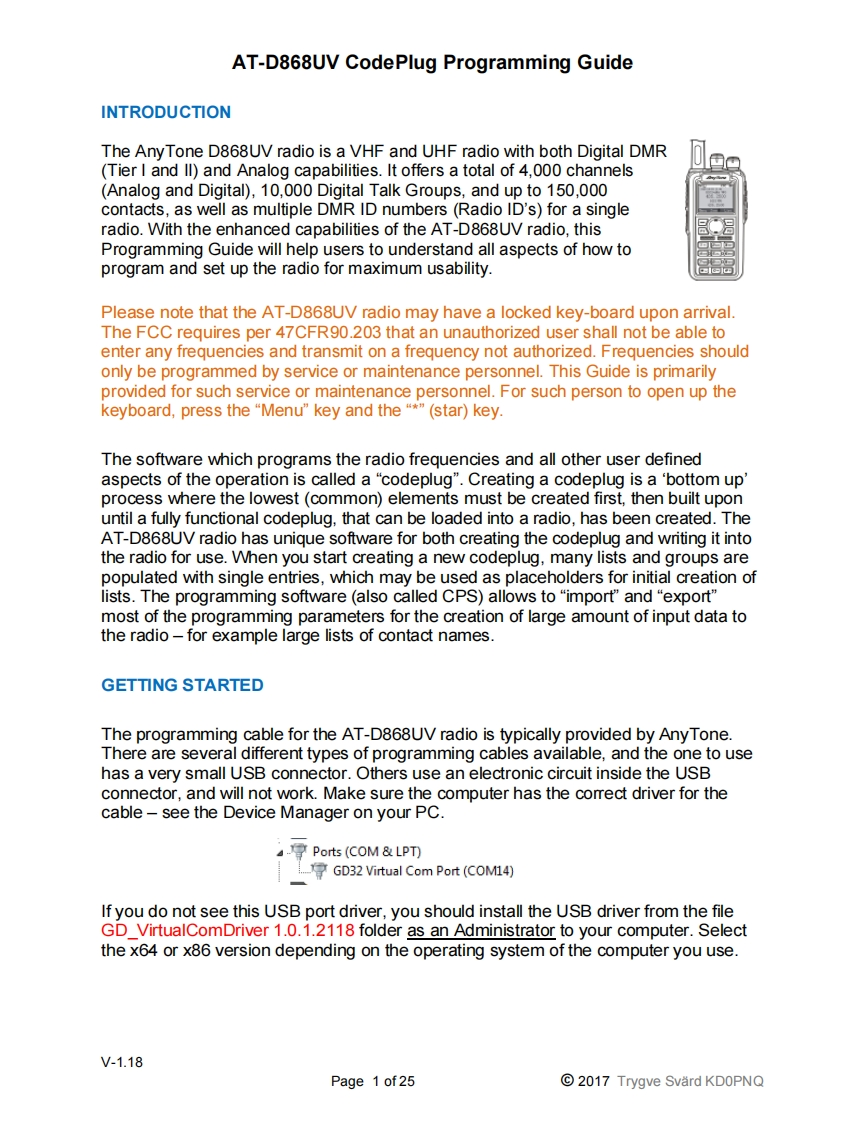

AT-D868UV CodePlug Programming GuideINTRODUCTIONThe AnyTone D868UV radio is a VHF and UHF radio with both Digital DMR(Tier I and ll)and Analog capabilities.It offers a total of 4,000 channels(Analog and Digital),10,000 Digital Talk Groups,and up to 150,000contacts,as well as multiple DMR ID numbers (Radio ID's)for a singleradio.With the enhanced capabilities of the AT-D868UV radio,thisProgramming Guide will help users to understand all aspects of how toprogram and set up the radio for maximum usability.Please note that the AT-D868UV radio may have a locked key-board upon arrival.The FCC requires per 47CFR90.203 that an unauthorized user shall not be able toenter any frequencies and transmit on a frequency not authorized.Frequencies shouldonly be programmed by service or maintenance personnel.This Guide is primarilyprovided for such service or maintenance personnel.For such person to open up thekeyboard,press the“Menu”key and the“*"(star)key.The software which programs the radio frequencies and all other user definedaspects of the operation is called a "codeplug".Creating a codeplug is a 'bottom upprocess where the lowest (common)elements must be created first,then built uponuntil a fully functional codeplug,that can be loaded into a radio,has been created.TheAT-D868UV radio has unique software for both creating the codeplug and writing it intothe radio for use.When you start creating a new codeplug,many lists and groups arepopulated with single entries,which may be used as placeholders for initial creation oflists.The programming software (also called CPS)allows to "import"and "export"most of the programming parameters for the creation of large amount of input data tothe radio-for example large lists of contact names.GETTING STARTEDThe programming cable for the AT-D868UV radio is typically provided by AnyToneThere are several different types of programming cables available,and the one to usehas a very small USB connector.Others use an electronic circuit inside the USBconnector,and will not work.Make sure the computer has the correct driver for thecable-see the Device Manager on your PC.a骨Ports(COM&LPTGD32 Virtual Com Port (COM14)If you do not see this USB port driver,you should install the USB driver from the fileGD VirtualComDriver 1.0.1.2118 folder as an Administrator to your computer.Selectthe x64 or x86 version depending on the operating system of the computer you use.V-1.18Page 1 of252017 Trygve Svard KDOPNQ
