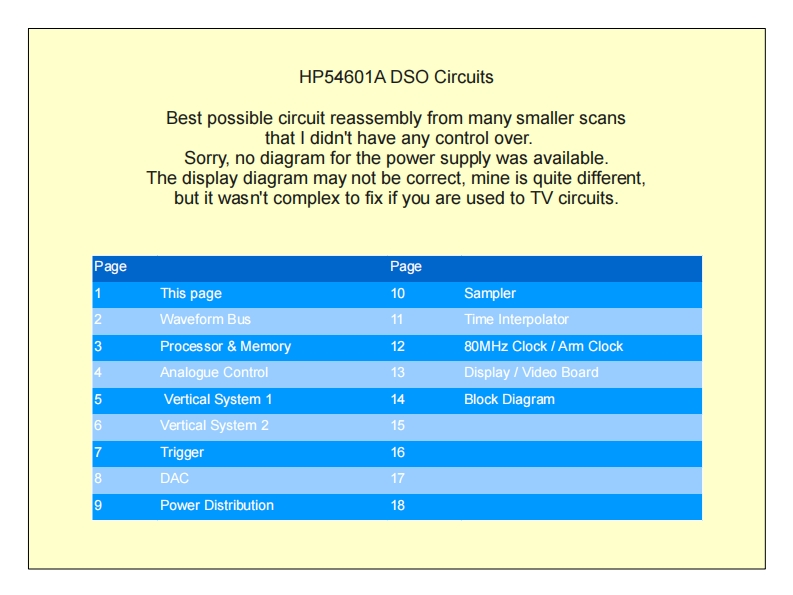

HP54601A DSO CircuitsBest possible circuit reassembly from many smaller scansthat I didn't have any control over.Sorry,no diagram for the power supply was available.The display diagram may not be correct,mine is quite different,but it wasn't complex to fix if you are used to TV circuits.PagePage1This page10Sampler2Waveform Bus11Time Interpolator3Processor Memory1280MHz Clock /Am Clock4Analogue Control13Display Video Board5Vertical System 114Block Diagram6Vertical System 2157Trigger168DAC179Power Distribution18
