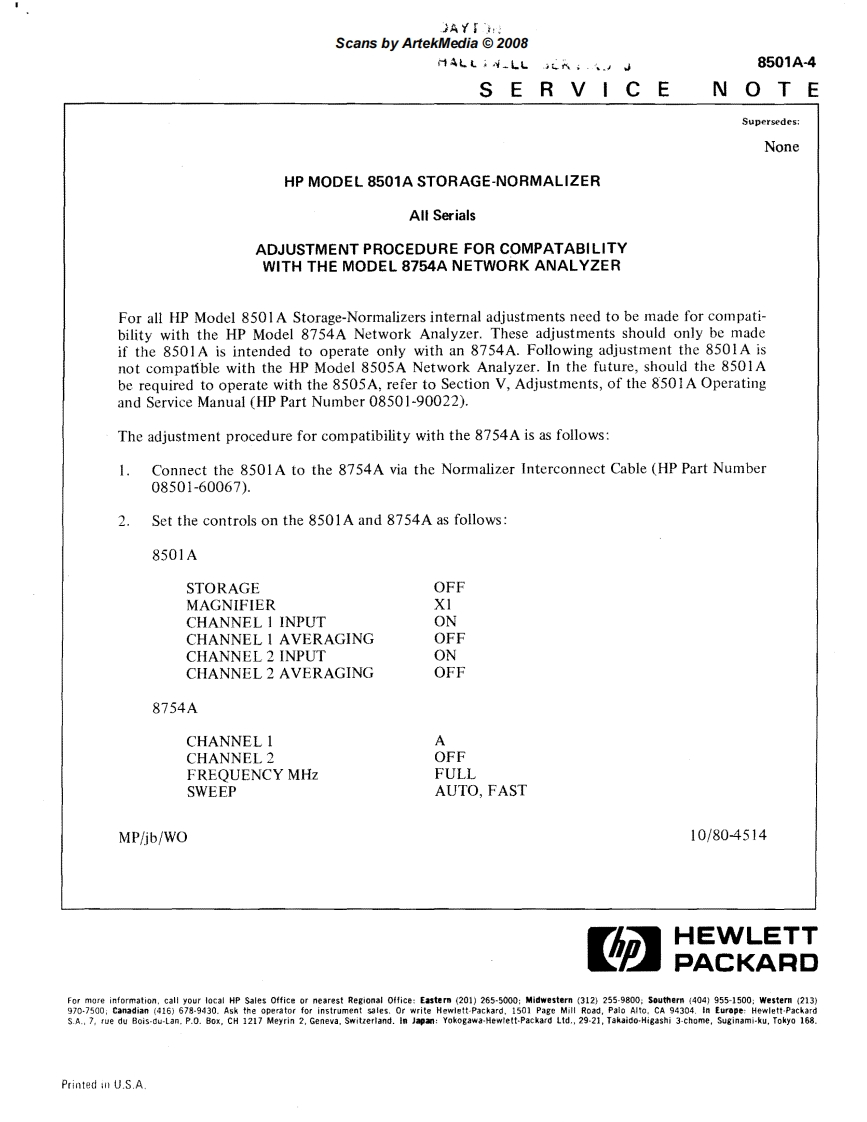

AYIScans by ArtekMedia @2008h4LtN-LL六：小8501A-4SERVI C EN OT ESupersedes:NoneHP MODEL 8501A STORAGE-NORMALIZERAll SerialsADJUSTMENT PROCEDURE FOR COMPATABILITYWITH THE MODEL 8754A NETWORK ANALYZERFor all HP Model 8501A Storage-Normalizers internal adjustments need to be made for compati-bility with the HP Model 8754A Network Analyzer.These adjustments should only be madeif the 8501A is intended to operate only with an 8754A.Following adjustment the 8501A isnot compatible with the HP Model 8505A Network Analyzer.In the future,should the 8501Abe required to operate with the 8505A,refer to Section V,Adjustments,of the 8501A Operatingand Service Manual (HP Part Number 08501-90022).The adjustment procedure for compatibility with the 8754A is as follows:1.Connect the 8501A to the 8754A via the Normalizer Interconnect Cable (HP Part Number08501-60067).2.Set the controls on the 8501A and 8754A as follows:8501ASTORAGEOFFMAGNIFIERXICHANNEL I INPUTONCHANNEL I AVERAGINGOFFCHANNEL 2 INPUTONCHANNEL 2 AVERAGINGOFF8754ACHANNEL IACHANNEL 2OFFFREQUENCY MHzFULLSWEEPAUTO,FASTMP/jb/WO10/804514HEWLETTPACKARDFor more information.call your local HP Sales Office or nearest Regional Office:Eastern (201)265-5000:Midwestern (312)255-9800:Southerm (404)955-1500:Westerm (213)970-7500;Canadian (416)678-9430.Ask the operator for instrument sales.Or write Hewlett-Packard,1501 Page Mill Road,Palo Alto.CA 94304.In Europe:Hewlett-PackardS.A.,7.rue du Bois-du-Lan.P.0.Box.CH 1217 Meyrin 2.Geneva.Switzerland.In Japan:Yokogawa-Hewtett-Packard Ltd.,29-21,Takaido-Higashi 3-chome,Suginami-ku,Tokyo 168.Printed in U.S.A.
