Korg_Mini-Korg_700S_(Univox)_Service_Manual维修服务手册含电器原理图

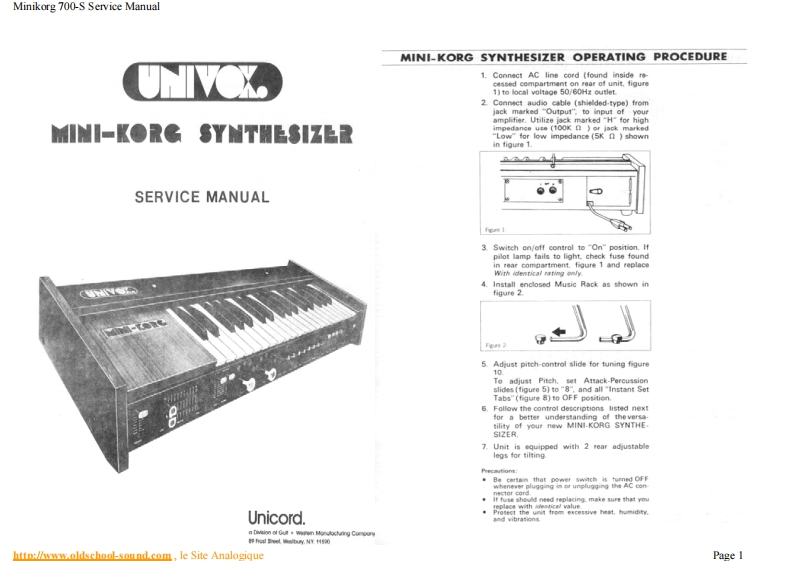

Minikorg 700-S Service ManualMINI-KORG SYNTHESIZER OPERATING PROCEDURE1.Connect Ac line cord (found inside recessed compartment on rear of unit.figure1)to local voltage 50/60Hz outlet2 Connect audio cable (shielded-type)fromjack marked "Output"to input of youramplifier.Utilize jack marked"H"for highMNI-KORg多YNTN上sIZ64 mpedance uce（100K0）or jack mark0dLow”for low impedance(5k0）shownin figure 1.SERVICE MANUALg13.Switch on/off control to "On"position.Ifpilot lamp fails to light check fuse foundin rear compartment.figure 1 and replaceWith identical rating omly.4.Install enclosed Music Rack as shown infigure 2.F75.Adjust pitch-control slide for tuning figure1To adjust Pitch.set Attack-Percussionslides (figure 5)to "8".and all "Instant SetTabs"(figure 8)to OFF position.6.Follow the control descriptions listed nextfor a better understanding of the versatility of your new MINI-KORG SYNTHE.SIZER.7.Unit is equipped with 2 rear adjustablelegs for tiltingUnicord.Pohet.yd￥brationsn Dvion of Gu。nnk大d有gCgepehM鲜4料阅http:/ywwoldschool-soundcom.le Site AnalogiquePage 1
