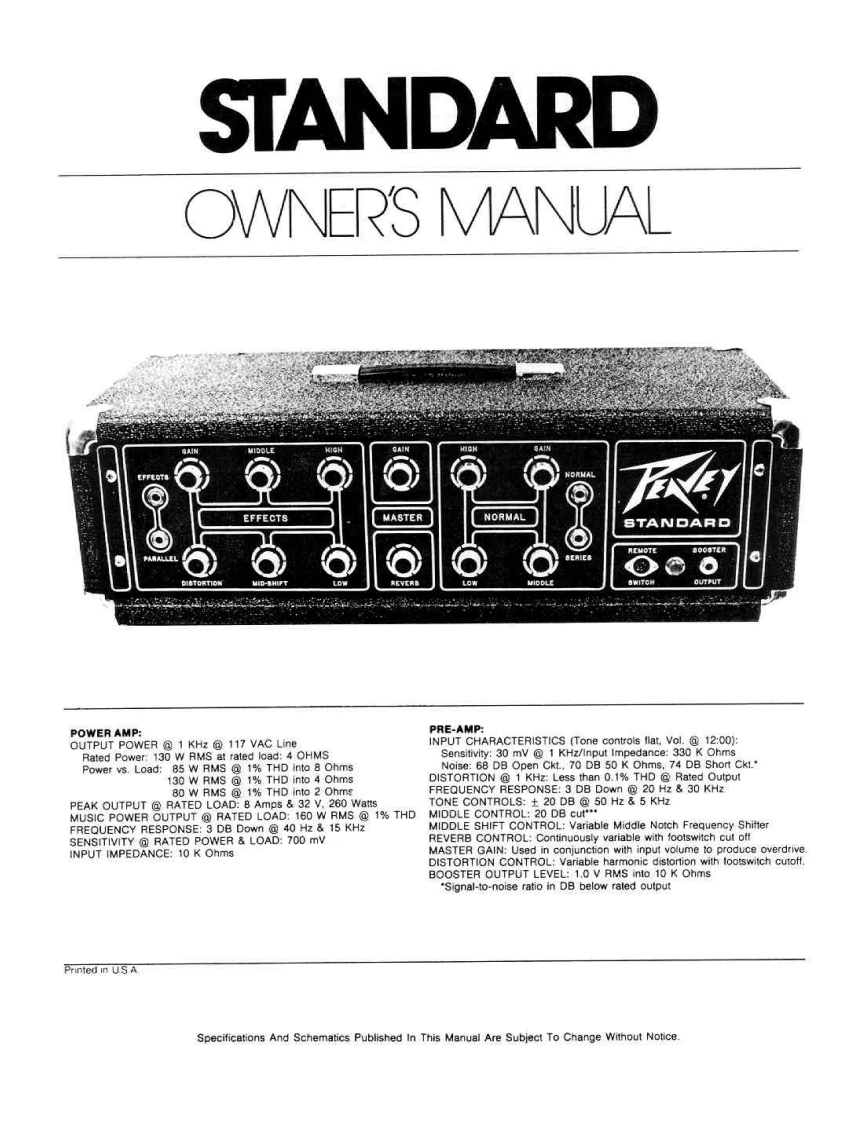

STANDARD○VNERS MANUALEFFECTSMASTERNORMALBTAN▣AREVERBPOWER AMP:PRE-AMP:OUTPUT POWER1 KHz@117 VAC LineINPUT CHARACTERISTICS (Tone controls llat,Vol.@12:00):Rated Power:130 W RMS at rated load:4 OHMSSensitivity:30 mV@1 KHz/Input Impedance:330 K OhmsPower vs.Load:85 W RMS 1%THD into 8 OhmsNoise:68 DB Open Ckt.70 DB 50 K Ohms,74 DB Short Ckt."130 W RMS@1%THD into 4 OhmsDISTORTION@1 KHz:Less than 0.1%THD@Rated Output80 W RMS@1%THD into 2 OhmsFREQUENCY RESPONSE:3 DB Down Q 20 Hz 30 KHzPEAK OUTPUT@RATED LOAD:B Amps 32 V.260 WattsTONE CONTROLS:t 20 DB 50 Hz 5 KHzMUSIC POWER OUTPUT@RATED LOAD:160 W RMS 1%THDMIDDLE CONTROL:20 DB cut.FREQUENCY RESPONSE:3 DB Down@40 Hz 15 KHzMIDDLE SHIFT CONTROL:Variable Middle Notch Frequency ShifterSENSITIVITY@RATED POWER LOAD:700 mVREVERB CONTROL:Continuously variable with footswitch cut offINPUT IMPEDANCE:10 K OhmsMASTER GAIN:Used in conjunction with input volume to produce overdriveDISTORTION CONTROL:Variable harmonic distortion with tootswitch cutoff.BOOSTER OUTPUT LEVEL:1.0 V RMS into 10 K Ohms"Signal-to-noise ratio in DB below rated outputPrinted in US ASpecifications And Schematics Published In This Manual Are Subject To Change Without Notice.
