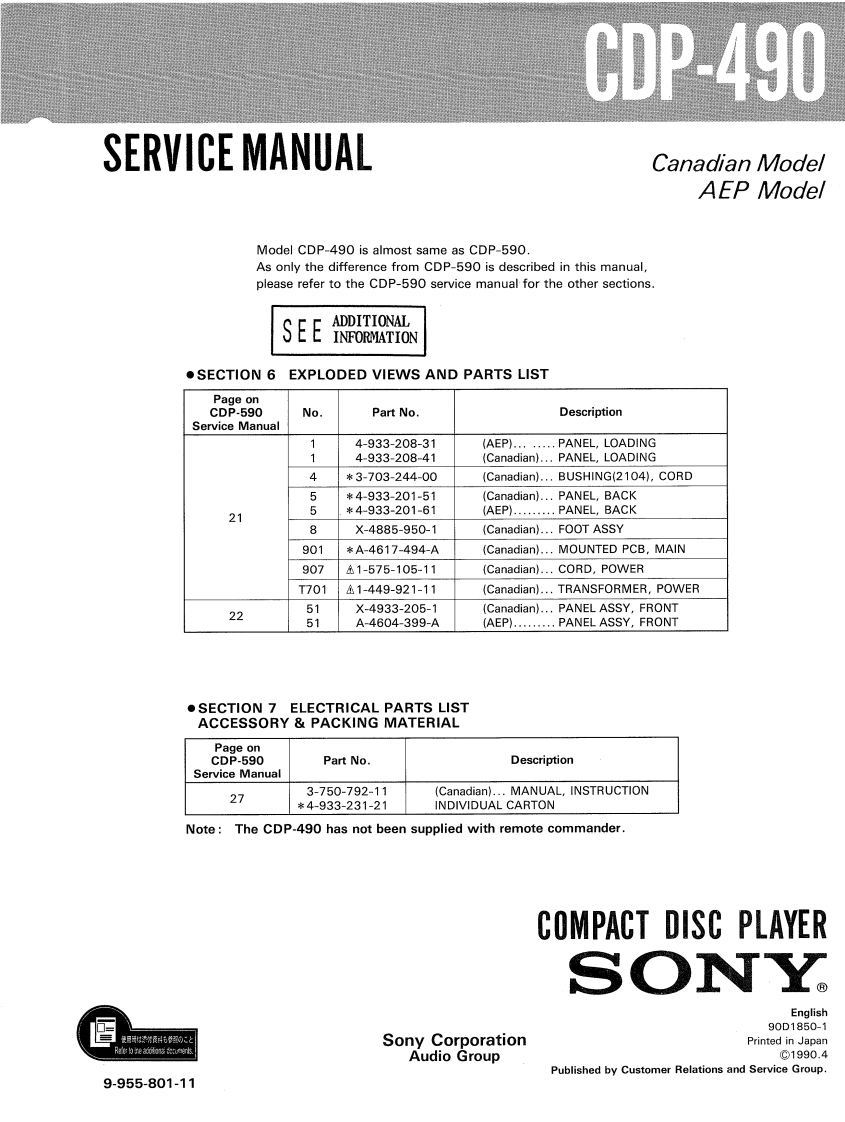

C3P-490SERVICE MANUALCanadian ModelAEP ModelModel CDP-490 is almost same as CDP-590As only the difference from CDP-590 is described in this manual,please refer to the CDP-590 service manual for the other sections.SEEADDITIONALINFORMATION●SECTION6EXPLODED VIEWS AND PARTS LISTPage onCDP-590NoPart No.DescriptionService Manual4-933-208-31(AEP)........PANEL,LOADING14-933-208-41(Canadian)...PANEL,LOADING4*3-703-244-00(Canadian)...BUSHING(2104),CORD*4-933-201-51(Canadian)...PANEL,BACK6*4-933-201-6121(AEP).........PANEL,BACK8X-4885-950-1(Canadian)...FOOT ASSY901*A-4617-494-A(Canadian)...MOUNTED PCB,MAIN9071-575-105-11(Canadian)...CORD,POWERT7011-449-921-11(Canadian)...TRANSFORMER,POWERX-4933-205-122(Canadian)...PANEL ASSY,FRONT51A-4604-399-A(AEP).........PANEL ASSY,FRONT.SECTION 7 ELECTRICAL PARTS LISTACCESSORY PACKING MATERIALPage onCDP-590Part No.DescriptionService Manual273-750-792-11(Canadian)...MANUAL,INSTRUCTION*4-933-231-21INDIVIDUAL CARTONNote:The CDP-490 has not been supplied with remote commander.COMPACT DISC PLAYERSONYEnglish90D1850-1Sony CorporationPrinted in Japan的我0这gkAudio Group©1990.4Published by Customer Relations and Service Group.9-955-801-11
