sony_icf-sw1_an-101_sm维修电器原理图手册

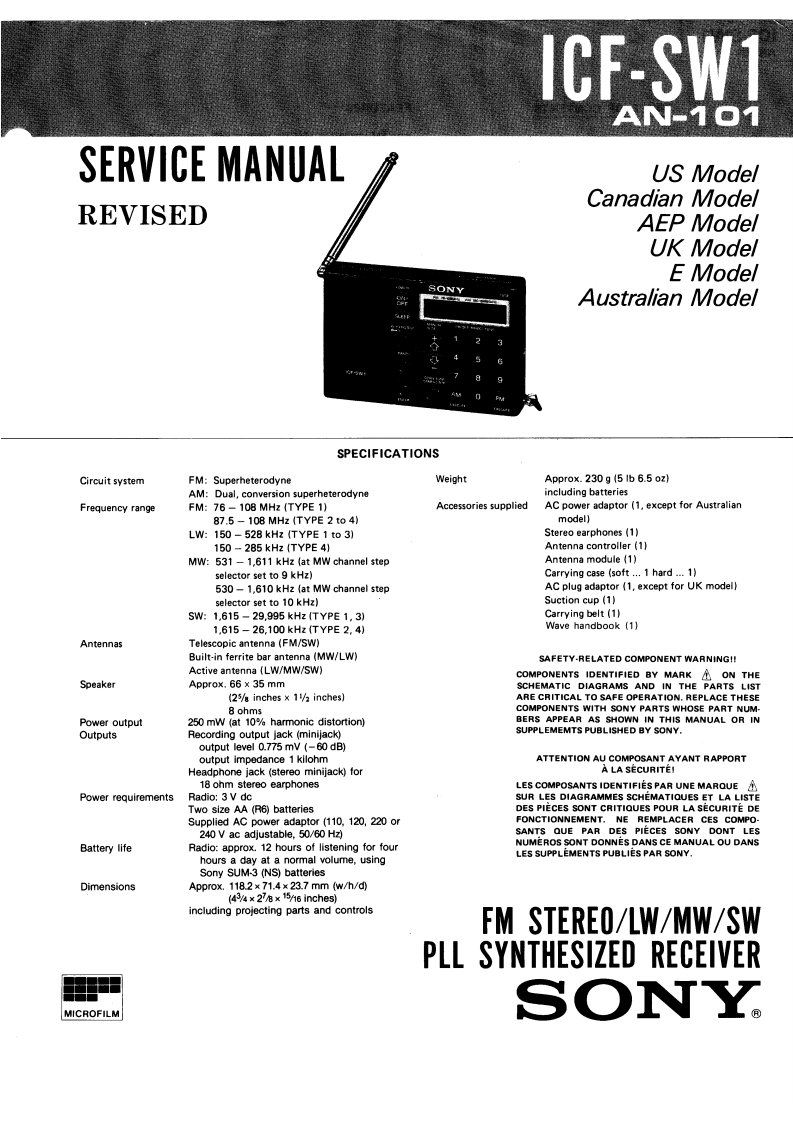

ICF-SW1SERVICE MANUALUS ModelCanadian ModelREVISEDAEP ModelUK ModelE ModelSONYAustralian ModelSPECIFICATIONSCircuit systemFM:SuperheterodyneWeightApprox.230 g (5 Ib 6.5 oz)AM:Dual,conversion superheterodyneincluding batteriesFrequency rangeFM:76-108 MHz (TYPE 1)Accessories suppliedAC power adaptor (1,except for Australian87.5-108 MHz (TYPE 2 to 4)model)LW:150 -528 kHz (TYPE 1 to 3)Stereo earphones (1)150-285 kHz (TYPE 4)Antenna controller (1)MW:531 -1,611 kHz (at MW channel stepAntenna module (1)selector set to 9 kHz)Carrying case (soft...1 hard...1)530-1,610 kHz (at MW channel stepAC plug adaptor (1,except for UK model)selector set to 10 kHz)Suction cup (1)SW:1615-29.995 kHz (TYPE1.3)Carrying belt (1)1615-26,100 kHz (TYPE2,4)Wave handbook (1)AntennasTelescopic antenna (FM/SW)Built-in ferrite bar antenna(MW/LW)SAFETY-RELATED COMPONENT WARNING!!Active antenna (LW/MW/SW)COMPONENTS IDENTIFIED BY MARK ON THESpeakerApprox.66 x 35 mmSCHEMATIC DIAGRAMS AND IN THE PARTS LIST(2s/a inches×1 /2 inches】.ARE CRITICAL TO SAFE OPERATION.REPLACE THESE8 ohmsCOMPONENTS WITH SONY PARTS WHOSE PART NUM-Power output250 mW (at 10%harmonic distortion)BERS APPEAR AS SHOWN IN THIS MANUAL OR INOutputsRecording output jack (minijack)SUPPLEMEMTS PUBLISHED BY SONY.output level 0.775 mV (-60 dB)output impedance 1 kilohmATTENTION AU COMPOSANT AYANT RAPPORTHeadphone jack (stereo minijack)forA LA SECURITEI18 ohm stereo earphonesLES COMPOSANTS IDENTIFIES PAR UNE MARQUEPower requirementsRadio:3V deSUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTETwo size AA (R6)batteriesDES PIECES SONT CRITIQUES POUR LA SECURITE DESupplied AC power adaptor (110,120,220 orFONCTIONNEMENT.NE REMPLACER CES COMPO-240 V ac adjustable,50/60 Hz)SANTS QUE PAR DES PIECES SONY DONT LESBattery lifeRadio:approx.12 hours of listening for fourNUMEROS SONT DONNES DANS CE MANUAL OU DANSLES SUPPLEMENTS PUBLIES PAR SONY.hours a day at a normal volume,usingSony SUM-3(NS)batteriesDimensionsApprox.118.2 x 71.4 x 23.7 mm (w/h/d)(43/4 x 27/8 x 15/16 inches)including projecting parts and controlsFM STEREO/LW/MW/SWPLL SYNTHESIZED RECEIVERMICROFILMSONY
