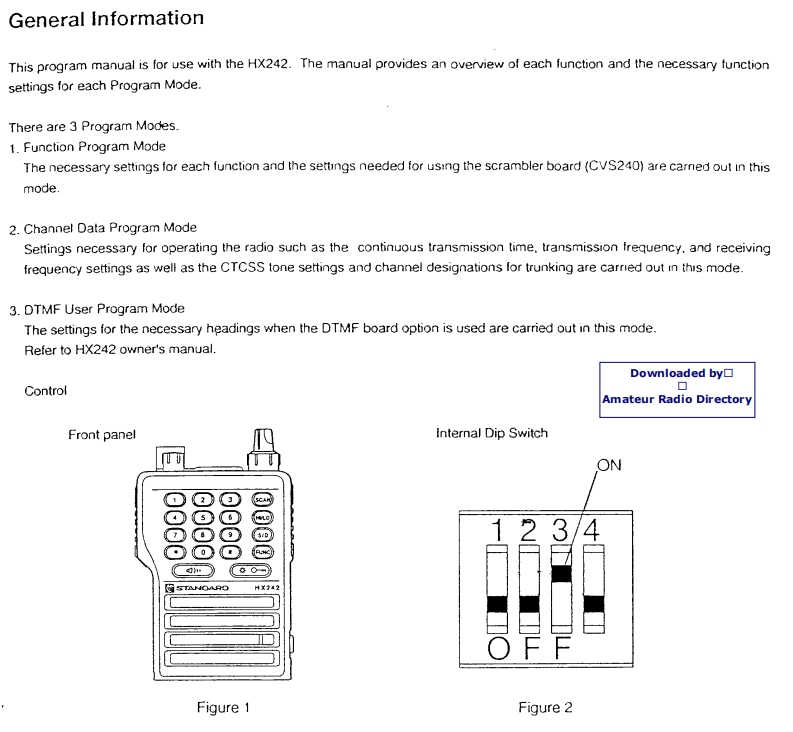

General InformationThis program manual is for use with the HX242.The manual provides an overview of each function and the necessary functionsettings for each Program Mode.There are 3 Program Modes1.Function Program ModeThe necessary settings for each function and the settings needed for using the scrambler board (CVS240)are carried out in thismode.2.Channel Data Program ModeSettings necessary for operating the radio such as the continuous transmission time.transmission frequency.and receivingfrequency settings as well as the CTCSS tone settings and channel designations for trunking are carried out in this mode.3.DTMF User Program ModeThe settings for the necessary headings when the DTMF board option is used are carried out in this mode.Refer to HX242 owner's manual.Downloaded by▣Control▣Amateur Radio DirectoryFront panelInternal Dip SwitchONc3⊙o在0→STANOAROH742Figure 1Figure 2
