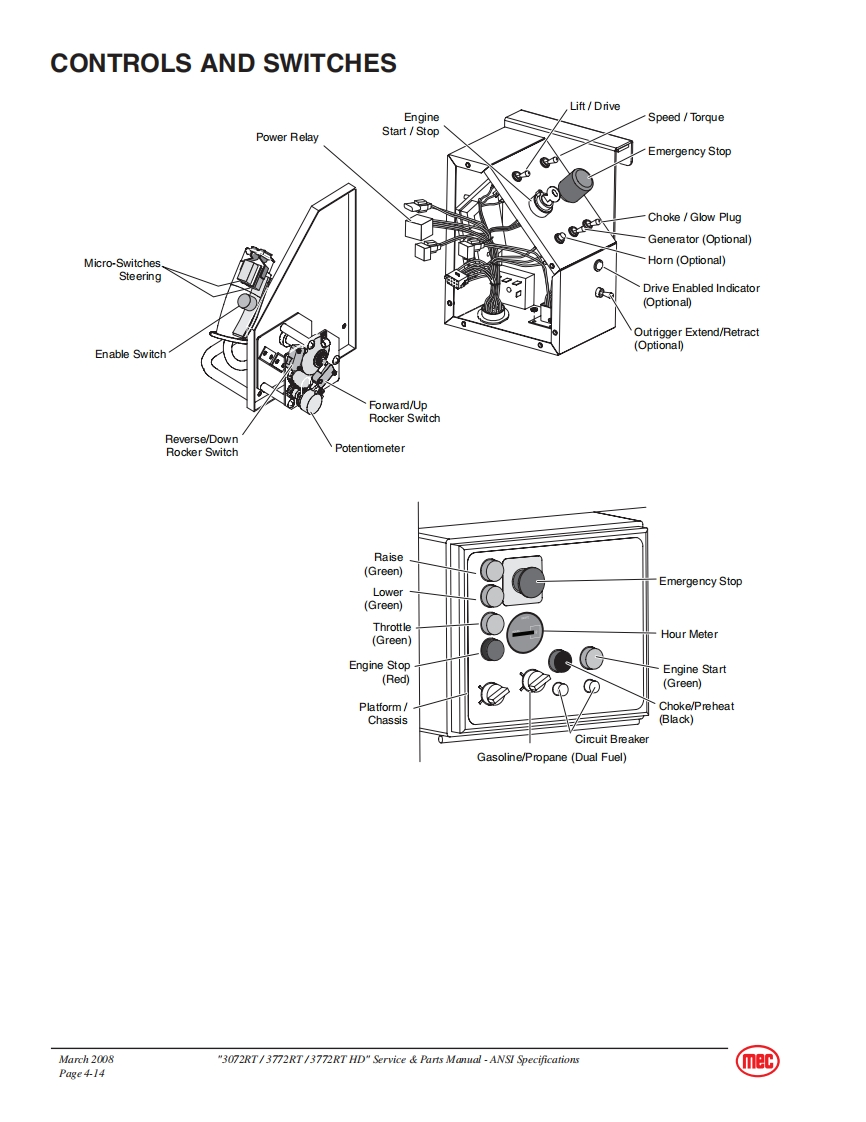

CONTROLS AND SWITCHESLift /DriveEngineSpeed /TorquePower RelayStart /StopEmergency StopChoke /Glow PlugGenerator (Optional)Micro-Switches.Horn(Optional)SteeringDrive Enabled Indicator(Optional)Outrigger Extend/Retract(Optional)Enable SwitchForward/UpRocker SwitchReverse/DownRocker SwitchPotentiometerRaise(Green)Emergency StopLower(Green)ThrottleHour Meter(Green)】Engine StopGoEngine Start(Red)☑(Green)Platform/Choke/PreheatChassis(Black)Circuit BreakerGasoline/Propane (Dual Fuel)March 2008"3072RT/3772RT/3772RT HD"Service Parts Manual-ANSI SpecificationsmecPage 4-14
