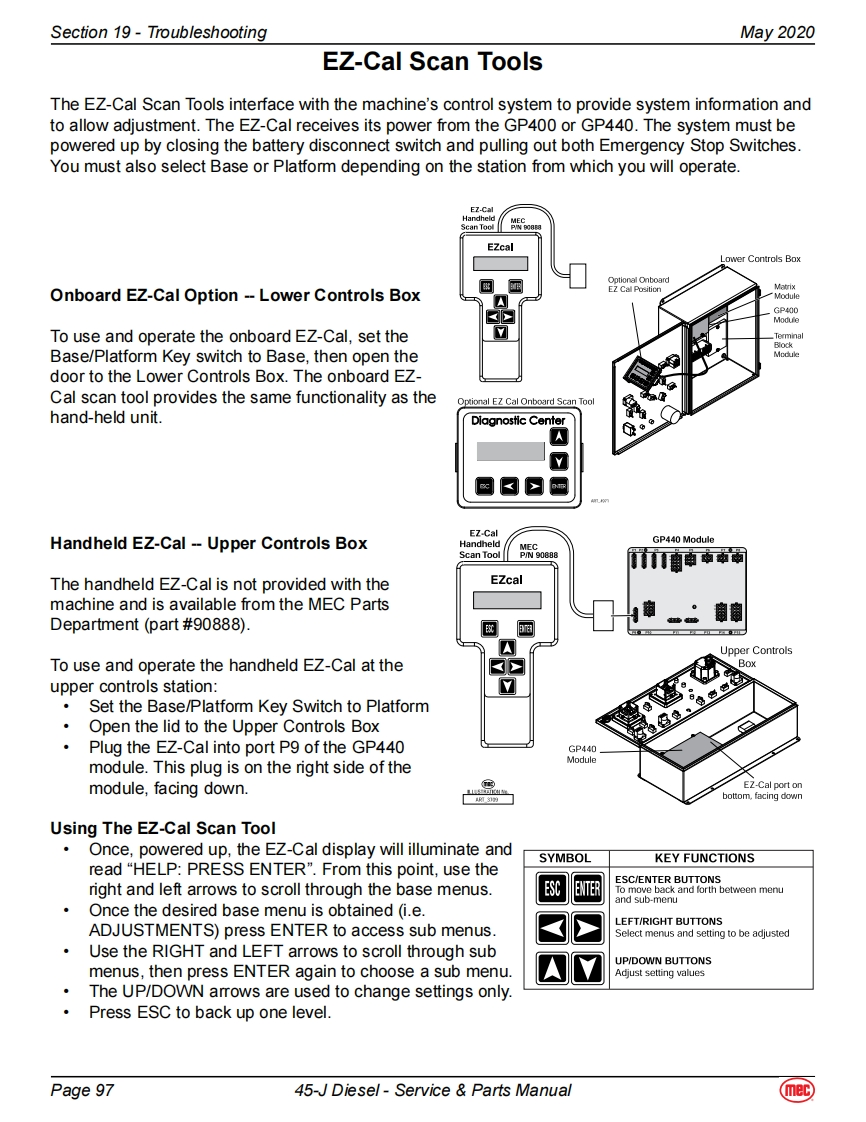

Section 19-TroubleshootingMay 2020EZ-Cal Scan ToolsThe EZ-Cal Scan Tools interface with the machine's control system to provide system information andto allow adjustment.The EZ-Cal receives its power from the GP400 or GP440.The system must bepowered up by closing the battery disconnect switch and pulling out both Emergency Stop Switches.You must also select Base or Platform depending on the station from which you will operate.EZ-Calan ToolEZcalLower Controls BoxOptional OnboardOnboard EZ-Cal Option --Lower Controls BoxE2 Cal PoitionModuleGP400ModuieTo use and operate the onboard EZ-Cal,set theTerminalBase/Platform Key switch to Base,then open thedoor to the Lower Controls Box.The onboard EZ-Cal scan tool provides the same functionality as theOptional EZ Cal Onboard Scan Toolhand-held unit.Diagnostic CenterEZ-CalHandheld EZ-Cal -Upper Controls BoxHandheldGP440 ModuleScan ToolThe handheld EZ-Cal is not provided with theEZcalmachine and is available from the MEC PartsDepartment (part #90888).Upper ControlsTo use and operate the handheld EZ-Cal at theBoxupper controls station:Set the Base/Platform Key Switch to Platform。Open the lid to the Upper Controls Box3经·Plug the EZ-Cal into port P9 of the GP440GP440】Modulemodule.This plug is on the right side of themodule,facing down.EZ-Cal port onbottom,facing downUsing The EZ-Cal Scan ToolOnce,powered up,the EZ-Cal display will illuminate andKEY FUNCTIONSread "HELP:PRESS ENTER".From this point,use theSYMBOLESC/ENTER BUTTONSright and left arrows to scroll through the base menus.ESCENTERTo move back and forth between menuand sub-menuOnce the desired base menu is obtained (i.e.LEFT/RIGHT BUTTONSADJUSTMENTS)press ENTER to access sub menus.Select menus and setting to be adjustedUse the RIGHT and LEFT arrows to scroll through subUP/DOWN BUTTONSmenus,then press ENTER again to choose a sub menu.Adjust setting valuesThe UP/DOWN arrows are used to change settings only.Press ESC to back up one level.Page 9745-J Diesel-Service Parts Manual(mec)
