MEC升降车平台96121-SCH-A9-20维修电气原理图手册

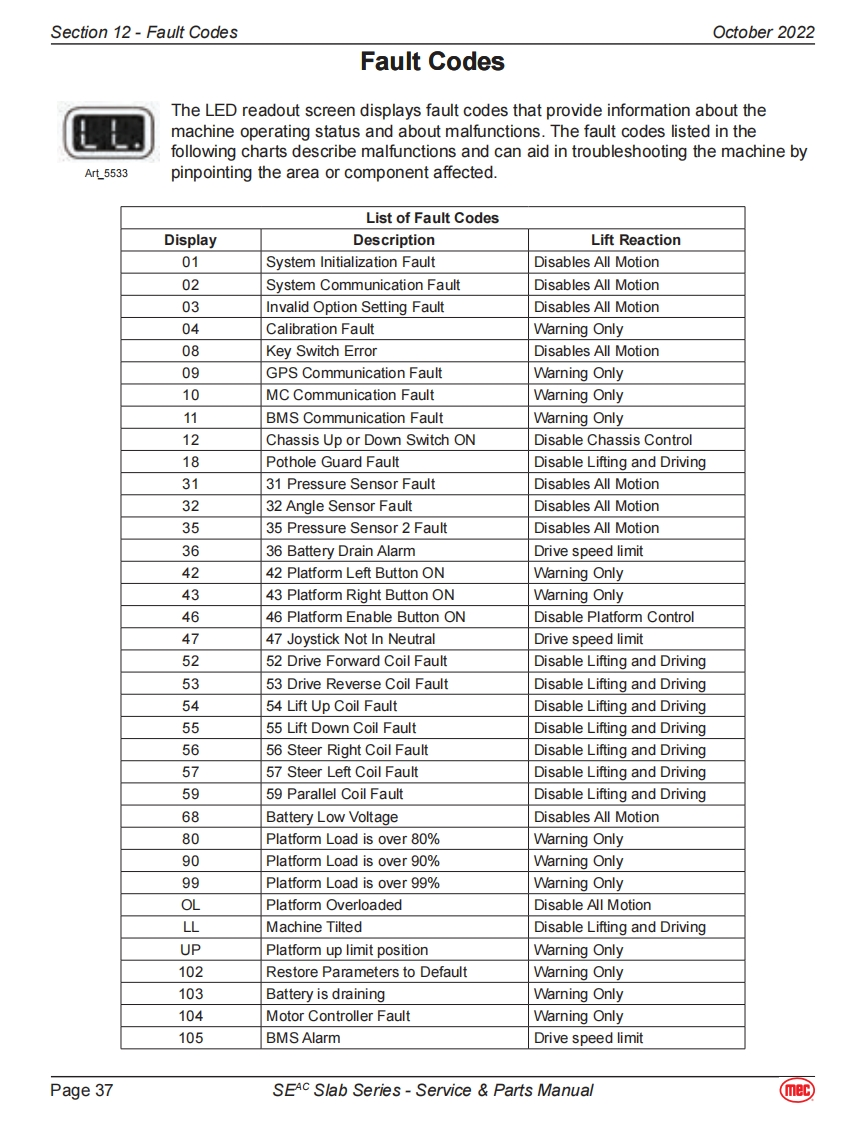

Section 12-Fault CodesOctober 2022Fault CodesThe LED readout screen displays fault codes that provide information about themachine operating status and about malfunctions.The fault codes listed in thefollowing charts describe malfunctions and can aid in troubleshooting the machine byArt_5533pinpointing the area or component affected.List of Fault CodesDisplayDescriptionLift Reaction01System Initialization FaultDisables All Motion02System Communication FaultDisables All Motion03Invalid Option Setting FaultDisables All Motion04Calibration FaultWarning Only08Key Switch ErrorDisables All Motion09GPS Communication FaultWarning Only10MC Communication FaultWarning Only11BMS Communication FaultWarning Only12Chassis Up or Down Switch ONDisable Chassis Control18Pothole Guard FaultDisable Lifting and Driving3131 Pressure Sensor FaultDisables All Motion3232 Angle Sensor FaultDisables All Motion3535 Pressure Sensor 2 FaultDisables All Motion3636 Battery Drain AlarmDrive speed limit4242 Platform Left Button ONWarning Only4343 Platform Right Button ONWarning Only4646 Platform Enable Button ONDisable Platform Control4747 Joystick Not In NeutralDrive speed limit5252 Drive Forward Coil FaultDisable Lifting and Driving5353 Drive Reverse Coil FaultDisable Lifting and Driving5454 Lift Up Coil FaultDisable Lifting and Driving5555 Lift Down Coil FaultDisable Lifting and Driving5656 Steer Right Coil FaultDisable Lifting and Driving5757 Steer Left Coil FaultDisable Lifting and Driving5959 Parallel Coil FaultDisable Lifting and Driving68Battery Low VoltageDisables All Motion80Platform Load is over 80%Warning Only90Platform Load is over 90%Warning Only99Platform Load is over 99%Warning OnlyOLPlatform OverloadedDisable All MotionLLMachine TiltedDisable Lifting and DrivingUPPlatform up limit positionWarning Only102Restore Parameters to DefaultWarning Only103Battery is drainingWarning Only104Motor Controller FaultWarning Only105BMS AlarmDrive speed limitPage 37SEAc Slab Series-Service Parts Manual(mec)
