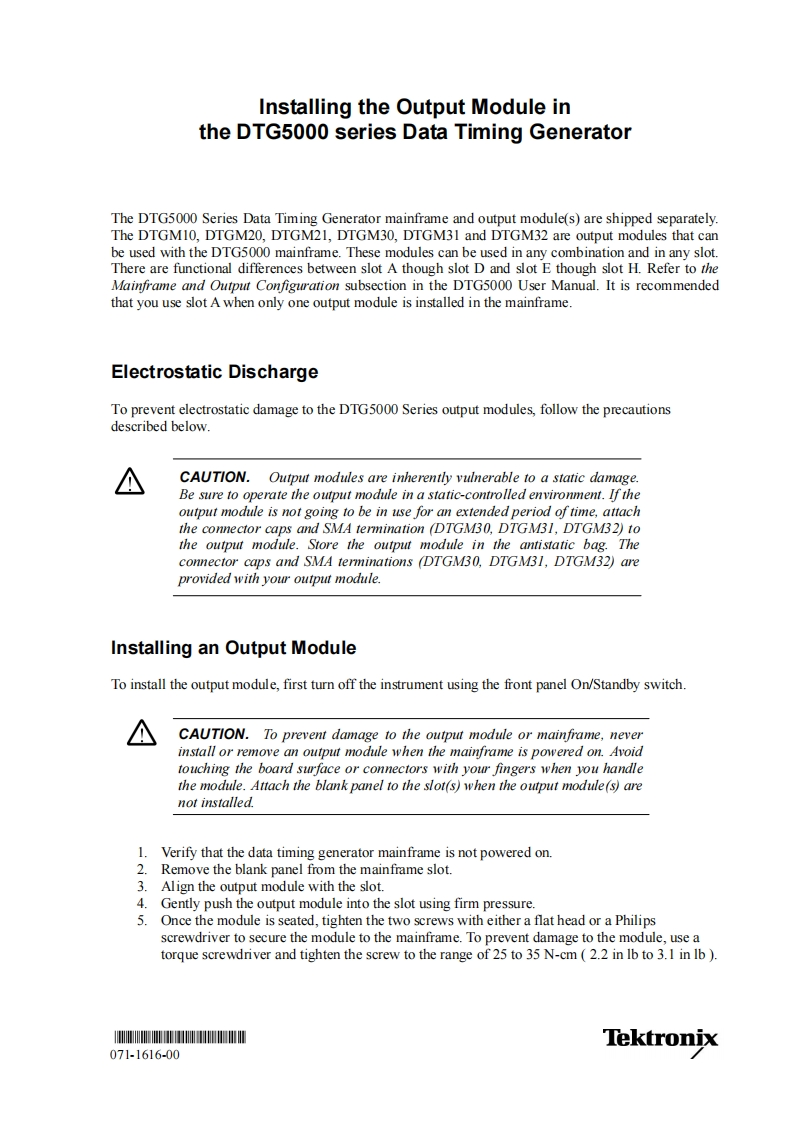

Installing the Output Module inthe DTG5000 series Data Timing GeneratorThe DTG5000 Series Data Timing Generator mainframe and output module(s)are shipped separately.The DTGM10,DTGM20,DTGM21,DTGM30,DTGM31 and DTGM32 are output modules that canbe used with the DTG5000 mainframe.These modules can be used in any combination and in any slot.There are functional differences between slot A though slot D and slot E though slot H.Refer to theMainframe and Output Configuration subsection in the DTG5000 User Manual.It is recommendedthat you use slot A when only one output module is installed in the mainframe.Electrostatic DischargeTo prevent electrostatic damage to the DTG5000 Series output modules,follow the precautionsdescribed below.CAUTION.Output modules are inherently vulnerable to a static damage.Be sure to operate the output module in a static-controlled environment.If theoutput module is not going to be in use for an extended period of time,attachthe connector caps and SMA termination (DTGM30,DTGM31,DTGM32)tothe output module.Store the output module in the antistatic bag.Theconnector caps and SMA terminations (DTGM30,DTGM31,DTGM32)areprovided with your output module.Installing an Output ModuleTo install the output module,first turn off the instrument using the front panel On/Standby switch.CAUTION.To prevent damage to the output module or mainframe,neverinstall or remove an output module when the mainframe is powered on.Avoidtouching the board surface or connectors with your fingers when you handlethe module.Attach the blank panel to the slot(s)when the output module(s)arenot installed1.Verify that the data timing generator mainframe is not powered on.2.Remove the blank panel from the mainframe slot.3.Align the output module with the slot.4.Gently push the output module into the slot using firm pressure.5.Once the module is seated,tighten the two screws with either a flat head or a Philipsscrewdriver to secure the module to the mainframe.To prevent damage to the module,use atorque screwdriver and tighten the screw to the range of 25 to 35 N-cm 2.2 in lb to 3.1 in Ib )Tektronix071-1616-00
