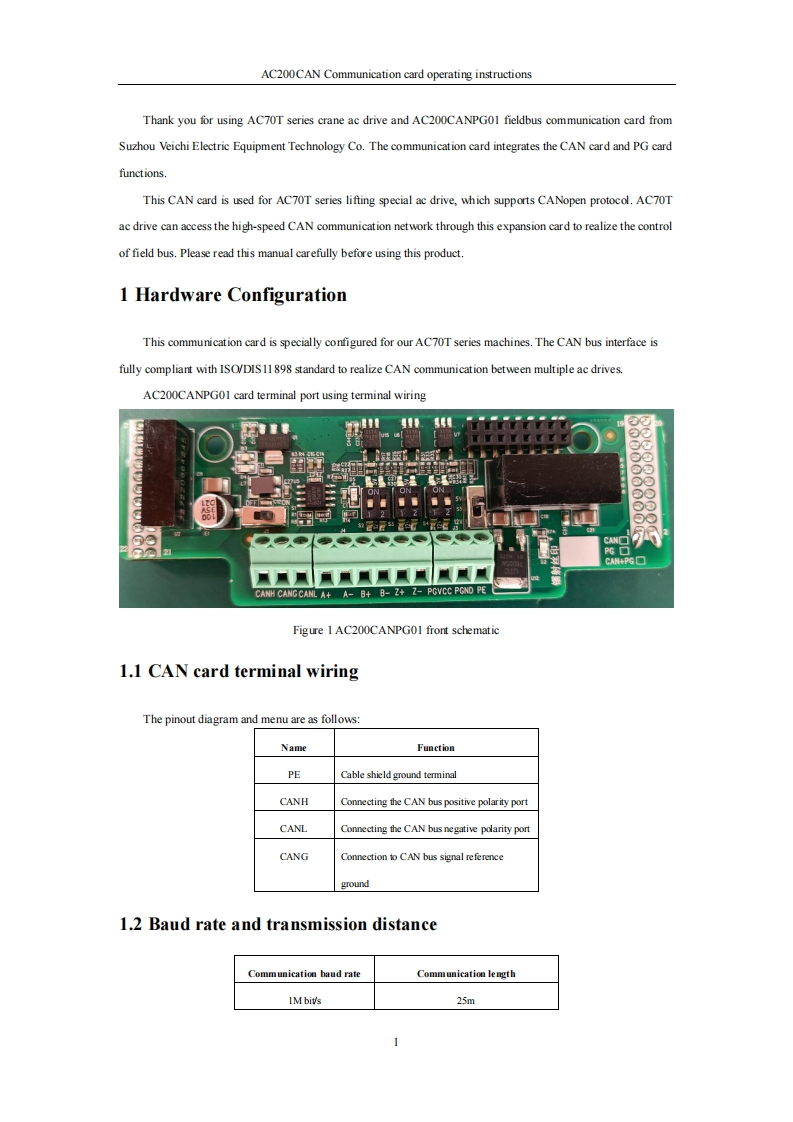

AC200CAN Communication card operating instructionsThank you for using AC70T series crane ac drive and AC200CANPGO1 fieldbus communication card fromSuzhou Veichi Electric Equipment Technology Co.The communication card integrates the CAN card and PG cardfunctions.This CAN card is used for AC70T series lifting special ac drive,which supports CANopen protocol.AC70Tac drive can access the high-speed CAN communication network through this expansion card to realize the controlof field bus.Please read this manual carefully before using this product.1 Hardware ConfigurationThis communication card is specially configured for our AC70T series machines.The CAN bus interface isfully compliant with ISO/DIS11 898 standard to realize CAN communication between multiple ac drives.AC200CANPGOI card terminal port using terminal wiring333383ANPG■CANH CANGCANL A+A-B+B-Z+Z-PGVCC PGND PEFigure 1 AC200CANPGO1 front schematic1.1 CAN card terminal wiringThe pinout diagram and menu are as follows:NameFunctionPECable shield ground terminalCANHConnecting the CAN bus positive polarity portCANLConnecting the CAN bus negative polarity portCANGConnection to CAN bus signal referenceground1.2 Baud rate and transmission distanceCommunication baud rateCommunication lengthIMbit/s25m
