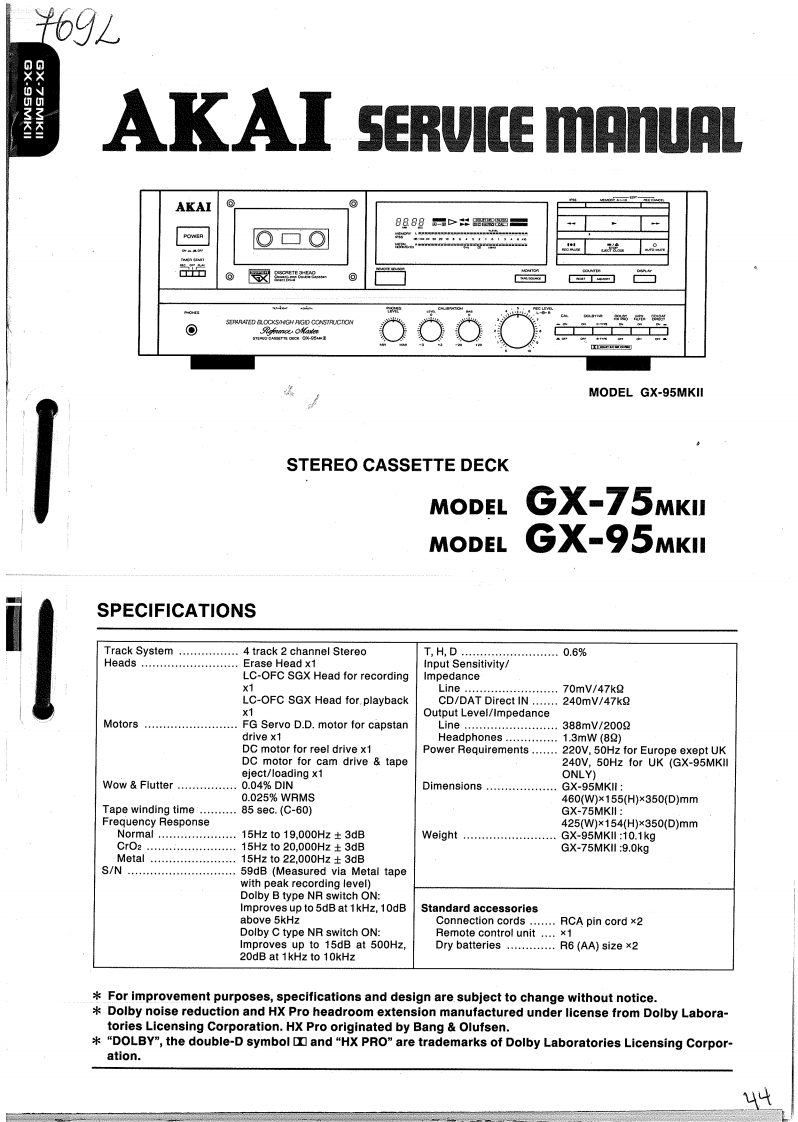

691AKAI SERUICE MANUALAKAI8县88->￥需是一▣O器⑧器2离端MODEL GX-95MKIISTEREO CASSETTE DECKMODELGX-75MKIIMODELGX-95MKIISPECIFICATIONSTrack System,…4 track 2 channel StereoT,H,D…0.6%Heads .........…Erase Head x1Input Sensitivity/LC-OFC SGX Head for recordingImpedanceX1Line..70mV/47k9LC-OFC SGX Head for.playbackCD/DAT Direct IN ......240mV/47kQOutput Level/ImpedanceMotors..................FG Servo D.D.motor for capstanLine ....388mV/2002drive x1Headphones..............1.3mW(80)DC motor for reel drive x1Power Requirements.......220V,50Hz for Europe exept UKDC motor for cam drive tape240V,50Hz for UK (GX-95MKIIeject/loading x1ONLY)Wow Flutter.........0.04%D1NDimensions ..................GX-95MKII0.025%WRMS460(W)×155(H)×350(D)mmTape winding time..85sec.(C-60)GX-75MKII:Frequency Response425(W)×154H)×350(D)mmNormal15Hzto19,000Hz±3dBWeight.........................GX-95MKIl :10.1kgCr02…15H2to20,000Hz±3dBGX-75MKIl :9.0kgMetal44…15Hzto22.000Hz±3dBS/N....59dB (Measured via Metal tapewith peak recording level)Dolby B type NR switch ON:Improves up to 5dB at 1kHz,10dBStandard accessoriesabove 5kHzConnection cords .....RCA pin cord x2Dolby C type NR switch ON:Remote control unit....x1Improves up to 15dB at 500Hz,Dry batteries .............R6 (AA)size x220dB at 1kHz to 10kHzFor improvement purposes,specifications and design are subject to change without notice.Dolby noise reduction and HX Pro headroom extension manufactured under license from Dolby Labora-tories Licensing Corporation.HX Pro originated by Bang Olufsen.*"DOLBY",the double-D symbol D and "HX PRO"are trademarks of Dolby Laboratories Licensing Corpor-ation.44
