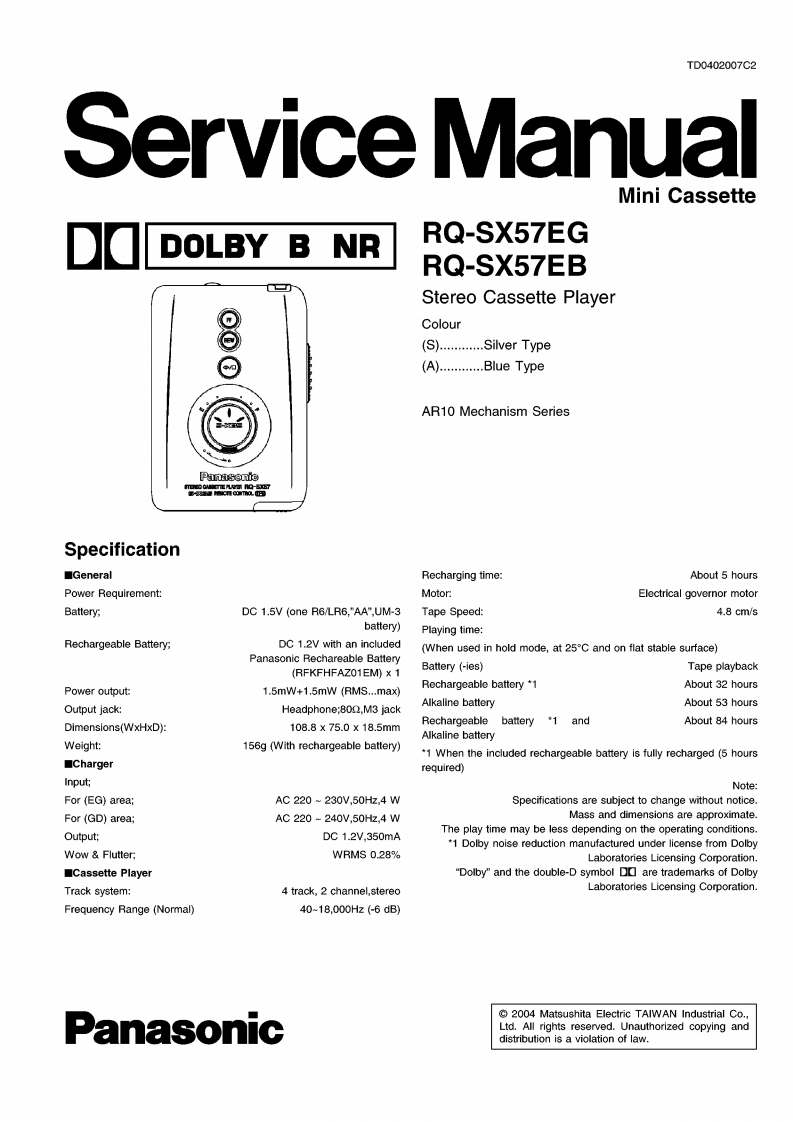

TD0402007C2Service ManualMini CassetteOLBY B NRRQ-SX57EGRQ-SX57EBStereo Cassette PlayerColour(S)...........Silver Type(A)..........Blue TypeAR10 Mechanism SeriesPanasente8股哥Specification■GeneralRecharging time:About 5 hoursPower Requirement:Motor:Electrical governor motorBattery;DC 1.5V (one R6/LR6,"AA",UM-3Tape Speed:4.8 cm/sbattery)Playing time:Rechargeable Battery;DC 1.2V with an included(When used in hold mode,at 25C and on flat stable surface)Panasonic Rechareable Battery(RFKFHFAZO1EM)x 1Battery(←ies)Tape playbackPower output:Rechargeable battery *1About 32 hours1.5mW+1.5mW (RMS...max)Output jack:Alkaline batteryAbout 53 hoursHeadphone;802,M3 jackDimensions(WxHxD):108.8×75.0×18.5mmRechargeablebattery*1 andAbout 84 hoursAlkaline batteryWeight:156g (With rechargeable battery)1 When the included rechargeable battery is fully recharged (5 hours■Chargerrequired)Input;Note:For (EG)area;AC220230V,50Hz,4WSpecifications are subject to change without notice.For (GD)area;AC220-240V,50Hz,4WMass and dimensions are approximate.Output;DC 1.2V,350mAThe play time may be less depending on the operating conditions.*1 Dolby noise reduction manufactured under license from DolbyWow Flutter;WRMS 0.28%Laboratories Licensing Corporation.■Cassette Player"Dolby"and the double-D symbol o are trademarks of DolbyTrack system:4 track,2 channel,stereoLaboratories Licensing Corporation.Frequency Range(Normal)40-18.000Hz(-6dBPanasonic2004 Matsushita Electric TAIWAN Industrial Co.,Ltd.All rights reserved.Unauthorized copying anddistribution is a violation of law.
